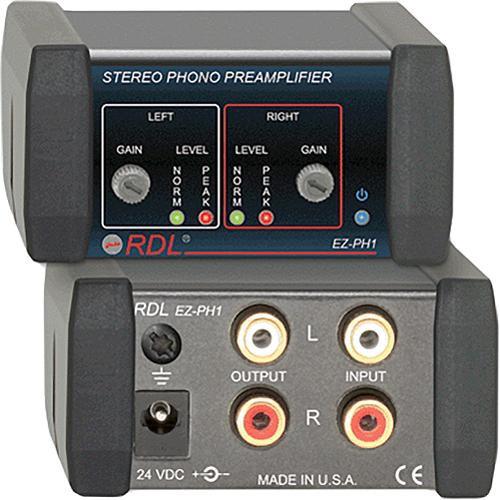

User Manual for RDL EZ-PH1 Stereo Phono Preamplifier Click to enlarge the picture
Contents of the user manual for the RDL EZ-PH1 Stereo Phono Preamplifier
- Product category: Phono Preamplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Phono Preamplifiers
|
User manual for the RDL EZ-PH1 Stereo Phono Preamplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The EZ-PH1 Stereo Phono Preamplifier from RDL can be used to adjust the output of your turntable to line level. It features gold-plated stereo RCA inputs and outputs, and has front-panel gain control for each input channel. It provides RIAA equalization, and includes a turntable grounding screw and a USA power supply. - Phono Input on Gold-Plated RCA Jacks
- Line Output on Gold-Plated RCA Jacks
- Front-Panel Gain Trimmer for Each Channel
- Dual-LED VU Meter for Each Channel
- Turntable Grounding Screw Provided
- Adapt Turntable to an Amplifier Line Input
- Feed a Turntable into a CD Recorder
UPC: 813721010131 In the Box RDL EZ-PH1 Stereo Phono Preamplifier (USA Power Supply) PS-24AS Switching Power Supply Turntable Grounding Screw Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL EZ-PH1 Stereo Phono Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL EZ-PH1 Specs | Input | 2x Stereo RCA jacks (47 kΩ) | | Input Level | -18 dBV, maximum | | Gain | Off to +55 dB (1 kHz) | | Output | -10 dBV nominal on stereo RCA jacks | | Equalization | RIAA | | Frequency Response | 20 Hz to 20 kHz (±0.75 dB referred to RIAA curve) | | Crosstalk | <-75 dB (1 kHz) | | Metering | Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output | | THD + N | <0.05% (20 Hz to 20 kHz, 36 dB gain) | | Noise | <-74 dB (36 dB gain, 1 kHz), <-80 dB (36 dB gain, 1 kHz, "A-weighted") | | Current | 24 VDC Power Supply Current: 30 mA (idle), 45 mA (maximum) | | Dimensions (L x W x D) | 2.7 x 2.8 x 1.5" (7.0 x 7.2 x 3.7 cm) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 7.2 x 5.1 x 2.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
