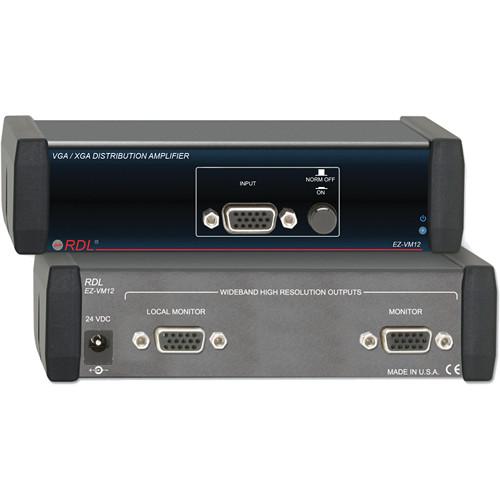

Product description The RDL EZ-VM12 VGA/XGA Video Distribution Amplifier is a high quality VGA / XGA 1x2 distribution system for computer monitors, flat-panel TVs and displays, etc. The unit is well suited for multi-video distribution in restaurants, bars, houses-of-worship, retail, and more.
- Inputs and Outputs on HD15 Female Connectors. The EZ-VM12 has 2 outputs.
- Wide RGB Bandwidth > 360 MHz Loaded
- High Resolution Compatibility VGA through QXGA
- Reliable Full-Size Front-Panel Switch for ID Bit Selection
- NORM ID BIT Connects LOCAL MONITOR and INPUT ID
- DC RGB Coupling, Output Polarity & Offset Follow Input
UPC: 813721010568 In the Box RDL EZ-VM12 VGA/XGA Video Distribution Amplifier 3 Year Warranty Table of Contents
- HD15 Input Cable Included - 36¨, 91.44 cm long
Upload User Manual
Have you got an user manual for the RDL EZ-VM12 VGA XGA Video Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
RDL EZ-VM12 Specs
| Connections || Input: VGA - QXGA RGBHV or RGB with combined sync |
Outputs (2): LOCAL MONITOR (1, ID bit pass-thru to INPUT), MONITOR
| Gain || Unity |
| Video Bandwidth || > 360 MHz |
| Video Impedance || 75 Ω (Input and output) |
| Dimensions || Sync (HV) input: 500 Ω TTL 0.7 V to 5 V p-p |
Sync (HV) output: 5V TTLSync (HV) Propogation delay: < 4 nS typ.
Sync (HV) Rise time: < 4 nS typ.Sync (combined): Output follows input
Bit Control: Switch-selectable (Pin 4, over-rides LOCAL MONITOR jack ID bit pass-thru)
| Power || 24 Vdc power supply current: 50 mA (idle), 60 mA (max.) |
Power supply input voltage: 100 to 240 VAC
| Dimensions || 5.75 x 3" (14.6 x 7.6cm) |
| Package Weight || 1.3 lb |
