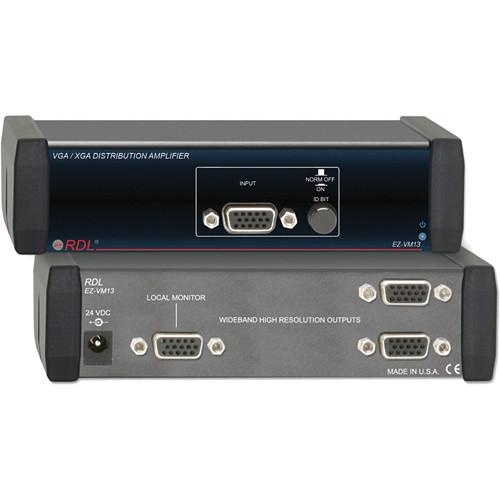

User Manual for RDL EZ-VM13 VGA XGA Video Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the RDL EZ-VM13 VGA XGA Video Distribution
- Product category: Distribution Amplifiers (DA's) RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Distribution Amplifiers (DA's)
|
User manual for the RDL EZ-VM13 VGA XGA Video Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL EZ-VM13 VGA/XGA Video Distribution Amplifier is a high quality VGA / XGA 1x3 distribution system for computer monitors, flat-panel TVs and displays, etc. The unit is well suited for multi-video distribution in restaurants, bars, houses-of-worship, retail, and more. - Inputs and Outputs on HD15 Female Connectors. The EZ-VM13 has 3 outputs.
- Wide RGB Bandwidth > 360 MHz Loaded
- High Resolution Compatibility VGA through QXGA
- Reliable Full-Size Front-Panel Switch for ID Bit Selection
- NORM ID BIT Connects LOCAL MONITOR and INPUT ID
- DC RGB Coupling, Output Polarity & Offset Follow Input
- HD15 Input Cable Included - 36¨, 91.44 cm long
UPC: 813721010575 In the Box RDL EZ-VM13 VGA/XGA Video Distribution Amplifier 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL EZ-VM13 VGA XGA Video Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL EZ-VM13 Specs | Connections | Input: VGA - QXGA RGBHV or RGB with combined sync
Outputs (3): LOCAL MONITOR (1, ID bit pass-thru to INPUT), MONITOR | | Gain | Unity | | Video Bandwidth | > 360 MHz | | Video Impedance | 75 Ω (Input and output) | | Dimensions | Sync (HV) input: 500 Ω TTL 0.7 V to 5 V p-p
Sync (HV) output: 5V TTLSync (HV) Propogation delay: < 4 nS typ.
Sync (HV) Rise time: < 4 nS typ.Sync (combined): Output follows input
Bit Control: Switch-selectable (Pin 4, over-rides LOCAL MONITOR jack ID bit pass-thru) | | Power | 24 Vdc power supply current: 50 mA (idle), 60 mA (max.)
Power supply input voltage: 100 to 240 VAC | | Dimensions | 5.75 x 3" (14.6 x 7.6cm) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 10.3 x 7.4 x 2.1" |
