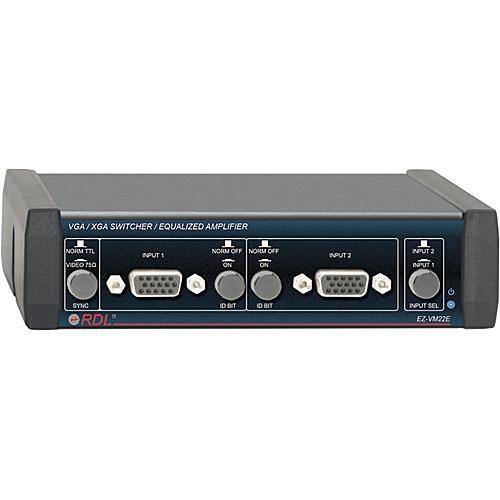

User Manual for RDL EZ-VM22E VGA XGA Switcher Equalized Amplifier Click to enlarge the picture
Contents of the user manual for the RDL EZ-VM22E VGA XGA Switcher Equalized
- Product category: Routers & Switchers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Routers & Switchers
|
User manual for the RDL EZ-VM22E VGA XGA Switcher Equalized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The EZ-VM22E VGA/XGA Switcher/Equalized Amplifier (BNC) from RDL is device that allows you to distribute (2) VGA/XGA input signal to (2) outputs. This model uses HD-15 connectors. This unit provide (2) front-panel, switch-selectable inputs. The unit supports bandwidths up to 400MHz. Resolutions from VGA through QXGA are supported. Solid-state switching of the video and sync signals is possible. The rear panel offers gain and EQ peaking trimmers. Other features include DC RGB coupling, output polarity, and offset follow input. The unit's small footprint makes it suitable for use in virtually any work environment. - Inputs and outputs feature HD-15 female connectors
- It offers (2) front-panel, switch-selectable inputs
- The unit supports bandwidths > 400MHz loaded
- Resolutions from VGA through QXGA are supported
- This device offers solid-state switching of video & sync signals
- It includes full-size switches for switched functions
- Switch-selectable TTL or video 75-Ohm input sync is available
- The device's "NORM ID BIT" connects the "LOCAL MONITOR" and "INPUT 1" ID
- Front-panel ID bit selection is available for each input
- Other features include: DC RGB coupling, output polarity, and offset follow input
- The rear panel features gain and EQ peaking trimmers
- A 3' HD-15 input cable is included
- This unit's small footprint makes it well suited for use in virtually any work environment
- All selector switches are accessible from the front panel
UPC: 813721010186 In the Box RDL EZ-VM22E VGA/XGA Switcher/Equalized Amplifier (BNC) Power Supply 3' HD-15 Input Cable Three-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL EZ-VM22E VGA XGA Switcher Equalized Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL EZ-VM22E Specs | Video | Inputs:
(2) VGA/QXGA RGBHV or RGB with combined sync
Outputs:
(2) LOCAL MONITOR (1, Buffered, ID bit pass-thru to INPUT 1)
(1) MONITOR (1, with GAIN and EQ trim)
Gain:
Unity (LOCAL MONITOR output), Unity to +6 dB (MONITOR output)
Equalization (peaking):
None (LOCAL MONITOR output)
Adjustable 0 to +8 dB at 50 MHz (MONITOR output);
Video Bandwidth:
> 400MHz
Output Offset:
+/-5mV typical (75 Ohm load)
Video Impedance:
75 Ohm (Input and output)
Sync (HV) Input:
500 TTL or 75 Ohms, video (switch-selectable), 0.7V to 5V p-p
Sync (HV) Output:
5V TTL
Sync (HV) Propogation Delay:
< 4nS typical
Sync (HV) Rise Time:
< 4nS typical
Sync (combined):
Output follows input
Bit Control:
Switch-selectable (individual selector per input, pin 4, over-rides LOCAL MONITOR jack ID bit pass-thru) | | Power | 24VDC power supply current, 70mA (idle), 80mA (maximum) | | Dimensions (HxWxD) | 5.75 x 5" (WxD)
Height not specified by manufacturer | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 10.1 x 7.5 x 2.4" |
