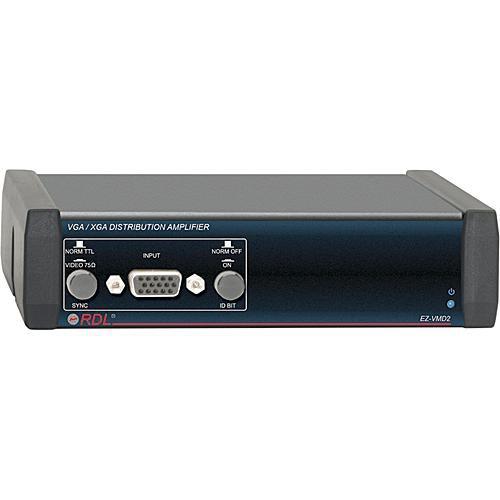

Product description The EZ-VMD2 1x2 VGA/XGA Distribution Amplifier from RDL is device that allows you to distribute (1) VGA or XGA input signal to (2) outputs. Use this device to split your computer video signal and display it on (2 ) displays. - This device allows you to distribute (1) VGA/XGA input signal to (2) outputs
- Inputs and output feature HD-15 female connectors
- Outputs are individually buffered
- This unit offers an RGB bandwidth of 400MHz
- It supports resolutions from VGA through QXGA
- The device includes full-size switches for switched functions
- Switch-selectable TTL or video, 75-Ohm, input sync is available
- Norm ID bit connects the local monitor and input ID
- It offers front-panel, input, ID-bit selection
- Other features includes: DC RGB coupling, output polarity, and offset follow input
- All selector switches are available from the front panel
- Its small footprint makes it well suited for use in virtually any work environment
UPC: 813721010209 In the Box RDL EZ-VMD2 1x2 VGA/XGA Distribution Amplifier Power Supply 36" (91.44cm) HD-15 Input Cable Three-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL EZ-VMD2 1x2 VGA XGA Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL EZ-VMD2 Specs | Video | Input:
(1) VGA through QXGA RGBHV or RGB with combined sync
Outputs:
(1) LOCAL MONITOR (1, Buffered, ID bit pass-thru to INPUT)
(1) Monitor (1, separately buffered)
Gain:
Unity
Video Bandwidth:
> 400 MHz
Video Impedance:
75 Ohms (input and output)
Sync (HV) Input:
500 Ohms TTL or 75 Ohms Video (Switch-selectable), 0.7 V to 5 V p-p
Sync (HV) Output:
5V TTL
Sync (HV) Propagation Delay:
< 4 nS typ.
Sync (HV) Rise Time:
< 4 nS typical
Sync (Combined):
Output follows input
Bit Control:
Switch-selectable (Pin 4, over-rides LOCAL MONITOR jack ID bit pass-thru) | | Power | 24VDC Power Supply Current: 70mA (idle), 80mA (maximum)
Power Supply Input Voltage: 100 to 240VAC | | Dimensions (HxWxD) | 5.75 x 5" (14.6 x 12.7cm), (WxD)
Height not specified by manufacturer | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 10.2 x 7.4 x 2.5" |
