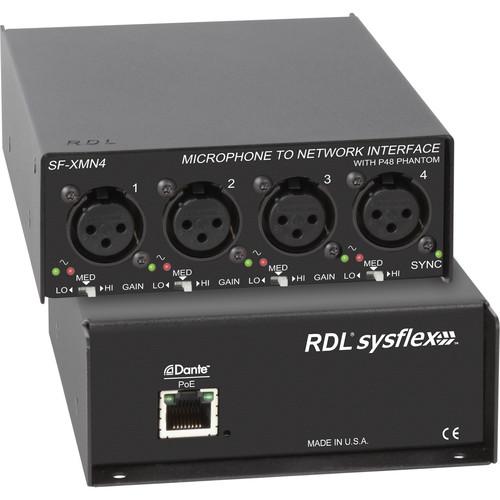

Product description The Microphone to Network Interface from RDL converts four XLR microphone inputs to Dante network audio channels over a single RJ45 network cable. Each XLR input is equipped with a switch to set the gain for dynamic or condenser microphones. A dual-LED VU meter displays the level for each input to facilitate selection of the ideal gain range. P48 phantom power is supplied to each microphone input. Valid PoE power and synchronization to the Dante network is indicated by a green LED on the front of the unit. The device is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted, or rack-mounted operation. - Each XLR input provides switch-selectable microphone gain: 40, 48, or 62 dB
- No special software required for module setup
- High-resolution 24-bit analog to digital conversion
- LED indicators for valid power and network sync
- Equipped for SysFlex rack mounting or surface mounting
UPC: 813721019813 In the Box RDL Four XLR Female Microphone Inputs to RJ45 Network Interface Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL Four XLR Female Microphone Inputs to RJ45 Network Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL SF-XMN4 Specs | Connectors | 1 x RJ45, Dante Network Output with PoE
4 x 3-Pin XLR Female, Microphone Input | | Transmission Rate | 100 Mb/s | | Sample Rates | Default: 48 kHz
Supported: 44.1, 88.2, and 96 kHz | | Bit Depth | 24-Bits | | Operating Level | -20 dBFS = 4 dBu | | Reference Level | 0 dBFS = 24 dBu | | Gain | Mic: 40 dB (Lo), 48 dB (Med), 62 dB (Hi); Front-Panel Selectable | | Input Level | Mic: -36 dBu (Lo), -44 dBu (Med), -58 dBu (Hi) for 4 dBu/-20 dBFS
Mic: -16 dBu (Lo), -24 dBu (Med), -38 dBu (Hi) Maximum | | Input Impedance | > 2.5 kOhms | | Phantom Power | P48, 48 VDC
Standard for Phantom: IEC 61938: 2013 | | Frequency Response | 20 Hz to 20 kHz (±0.5 dB) | | Equivalent Input Noise | -130 dBu (62 dB gain); -132 dBu A-Weighted
Noise Below -20 dBFS: Mic: < -72 dB (Lo), < -72 dB (Med), < -68 dB (Hi) | | THD + N | < 0.1% (20 Hz to 20 kHz, +4 dBu/-20 dBFS); 0.015% at 1 kHz (Typical) | | CMRR | > 65 dB (50 to 120 Hz) | | Crosstalk | Below Noise Floor | | Indicators | 2 x Ethernet Link and Speed, Rear Panel
1 x Sync, Front Panel
8 x Dual-LED VU Meter, Front Panel | | Power Requirements | PoE Class 0, IEEE 802.3af | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Dimensions | 4.23 x 1.68 x 5.77" / 10.74 x 4.27 x 14.66 cm | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 7.2 x 5.1 x 2.4" |
