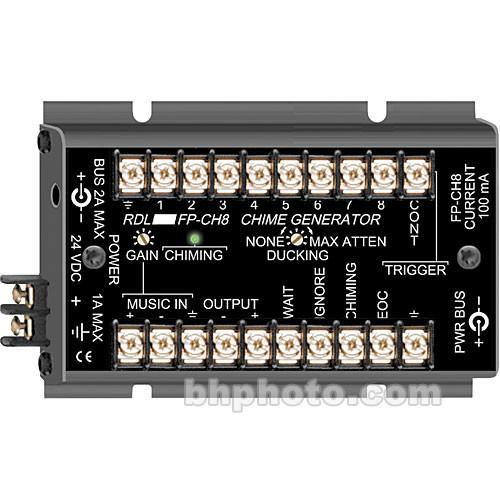

Product description The FP-CH8 Chime Generator from RDL is an electronic chime generator that can produce (8) different synthesized chimes. Each chime can consist of (3) tones and (3) harmonics to create a natural sound and both single and sequence/repeated tones are available.
Background music and audio may be connected to an audio input. When chimes play, the music source will automatically fade or cut out momentarily depending on the preset you choose. Indicators on the generator show that status of music or chimes. Chime patterns available on this model include:
-single strike
-double strike
-triple strike
-tone ring
-manual strike
-descending triple strike
-euro siren
-multi-tone alert - Chime Generation
- This unit can electronically produce up to (8) different chime sounds.
- Synthesized Bell Harmonics
- Each chime can consist of (3) tones and (3) harmonics to produce a natural sound.
- Single & Sequence Tones
- Both single and repeated tones are available on this unit.
- Background Music
- An audio input is available for music and can be set to automatically fade or cut out when a chime rings.
- Status Indicators
- Indicators on the unit show the status of music and chimes.
UPC: 813721012555 In the Box RDL FP-CH8 Chime Generator Chime Generator Three-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL FP-CH8 Chime Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL FP-CH8 Specs | Construction | Metal, plastic | | Finish | Black | | Music Input | Inputs: 50 kΩ balanced or unbalanced
Input Signal: -20 dBV (unbalanced) to +4 dBu (balanced)
Maximum Input Level: +22 dBu
Frequency Response: 20Hz to 50kHz (+/- 0.5 dB)
THD+N: < 0.05% (unity gain, 50Hz to 20kHz)
Noise below +4 dBu: < -70 dB (unity gain)
Headroom: > 16 dB (above +4 dBu)
Gain: Unity to +22 dB (adjustable)
Ducking Level: Unity to fully off (adjustable) | | Control Terminals | Input Configuration: Pull to ground, 0.5mA
Trigger Inputs (8): Trigger on high to low transition
Control Inputs (3):
WAIT (play delay)
IGNORE/Abort (no playback)
CONT (continuous repeat of triggered chime)
Output Configuration: Open collector @ 100mA
Control Outputs (2):
CHIMING (low when chiming)
EOC (low 100 mS at end of chime) | | Output | Output: 150Ω balanced or 75Ω unbalanced
Output Signal: +4 dBu nominal | | Power | 24-33VDC @ 100mA, ground-referenced | | Dimensions (HxWxD) | 3.25 x 5 x 1.36" (8.26 x 12.7 x 3.46cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 7.2 x 5.1 x 2.3" |
