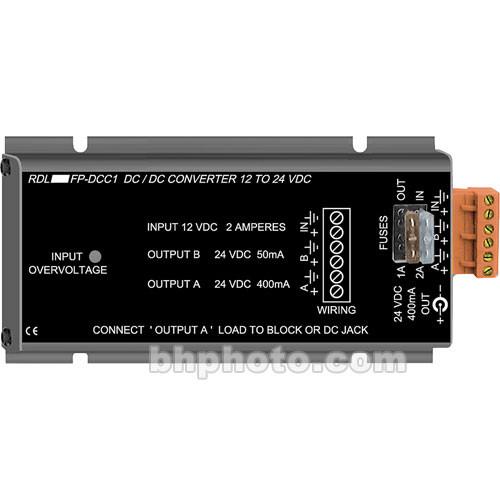

User Manual for RDL FP-DCC1 12VDC to 24VDC Converter Click to enlarge the picture
Contents of the user manual for the RDL FP-DCC1 12VDC to 24VDC Converter
- Product category: Power Supplies RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Power Supplies
|
User manual for the RDL FP-DCC1 12VDC to 24VDC Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The FP-DCC1 from RDL is a compact 12VDC To 24VDC power converter that allows you to power 24VDC devices with a 12VDC source. The compact metal design features ground-referenced terminal block and DC jack power outputs with 2 separate advantages. The DC jack and one terminal block are high-current outputs, while the other terminal block is a low-noise output. Both types of outputs may be used simultaneously.
The unit has built-in protection circuitry that automatically shuts the device down if an input voltage higher than 15VDC is detected. In the event of input overvoltage, the indicator LED will illuminate. The input and outputs are protected against excessive current and reverse voltages. Note: This item is not intended to power floating (bipolar) modules. - Compact and convenient metal construction
- Allows powering of 24VDC devices from a 12VDC power source
- Ground-referenced 24VDC power output
- DC jack and terminal block outputs
- Separate high-current and low-noise outputs for versatility. Both outputs may be used simultaneously
- Protection circuitry prevents excessive currents and reverse voltages on the input and outputs
- Device shuts down if more than 15VDC is present at the input. An overvoltage indicator will illuminate in this situation
UPC: 813721012371 In the Box RDL FP-DCC1 12VDC to 24VDC Converter 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL FP-DCC1 12VDC to 24VDC Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL FP-DCC1 Specs | Connectors | 1 x Terminal Block Input
2 x Terminal Block Outputs (One 400mA, One 50mA)
1 x DC Jack Output | | Power Requirements | 11-14VDC, Ground-Referenced | | Dimensions (HxWxD) | 1.25 x 3.25 x 6.54" (32 x 83 x 166mm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 4.38 lb | | Box Dimensions (LxWxH) | 7.0 x 2.25 x 0.87" |
