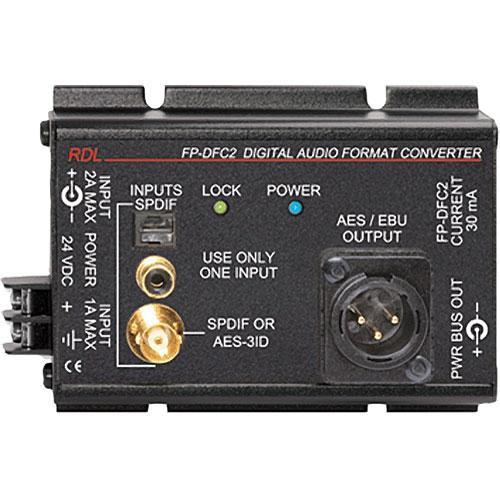

User Manual for RDL FP-DFC2 - Digital Audio Format Converter Click to enlarge the picture
Contents of the user manual for the RDL FP-DFC2 - Digital Audio Format
- Product category: Format Converters RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Format Converters
|
User manual for the RDL FP-DFC2 - Digital Audio Format contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The FP-DFC2 from RDL is a professional solution for where conversion of an S/PDIF digital audio signal to AES/EBU format is required, and where installation space is at a premium. The compact form still manages to provide 3 input-connector options, along with two LEDs that indicate power present and lock status for the incoming signal. The included Sure-Lok auto-recovery circuitry delivers stability in the event of input signal interruption, by re initiating lock up of the signal as soon as it is available. The FP-DFC2 is also supplied with a power interconnect cable for daisy-chaining multiple modules from a single power supply (power supply is not included). Power can also be applied via full-size barrier block terminals. - Digital audio format converter that provides AES/EBU output from a single source S/PDIF input
- Full operation up to 24-bit/192kHz with automatic sample rate detection
- Input can be derived from any one of 3 connector sources, RCA coaxial, TOSLink optical or BNC
- All header information common to both formats is provided in the AES/EBU output, not just selected information
- Anti latch-up control circuits guarantee re-lock with the incoming digital signal in the event that the input is interrupted due to switching or other unforeseen circumstances
- AES/EBU output is transformer isolated
- Compact design permits the unit to be easily mounted, particularly in confined spaces and in various locations in equipment racks where space is at a premium
UPC: 813721012623 In the Box RDL FP-DFC2 - Digital Audio Format Converter Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL FP-DFC2 - Digital Audio Format Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL FP-DFC2 Specs | ADC | Not applicable | | DAC | Not applicable | | Sample Rates | Up to 192kHz | | Analog In | Not applicable | | Analog Outputs | Not applicable | | Digital Input Connectors | 1 x RCA coaxial
1 x TOSLink optical
1 x BNC | | Digital Output Connectors | 1 x XLR | | Word Clock | No | | Dynamic Range | Not applicable | | Frequency Response | Not applicable | | THD + N | Not applicable | | Power Requirements | 24VDC @ 30mA, center post +, via optional external power adapter | | Dimensions (WxDxH) | 3.25 x 4.8 x 1.34" (83 x 122 x 34mm) | | Weight | Not specified by manufacturer | | Specialties | BNC jack can also receive an AES-3id signal and convert it to AES/EBU | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 7.2 x 5.1 x 2.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
