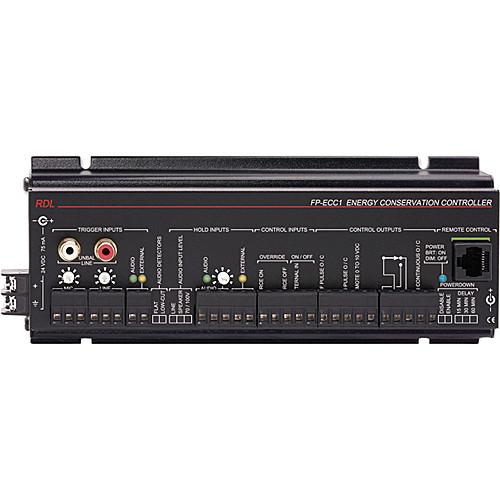

User Manual for RDL FP-ECC1 Energy Conservation Controller Click to enlarge the picture
Contents of the user manual for the RDL FP-ECC1 Energy Conservation Controller
- Product category: Switchers & Controllers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Switchers & Controllers
|
User manual for the RDL FP-ECC1 Energy Conservation Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The FP-ECC1 Energy Conservation Controller by RCL is designed to automatically turn an A/V system on and off for maximum energy savings. Multiple sensing inputs and control outputs are provided in standard formats affording flexibility in a broad variety of installations.
The audio input is normally connected to the speaker output of the system power amplifier. Switch-selectable low-cut filters are provided for all of the audio sensing inputs. These filters attenuate low frequencies that could false trigger the module. Audio and control connections use detachable terminal blocks. In the Box RDL FP-ECC1 Energy Conservation Controller Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL FP-ECC1 Energy Conservation Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL FP-ECC1 Specs | Trigger Connectivity | Audio Trigger Inputs:
Balanced Mic (50kΩ bridging)
Balanced Line (50kΩ bridging)
Unbalanced Line (50kΩ)
Audio Trigger Threshold:
Mic: -70 to -38 dBu, adjustable threshold
Line: -38 to -12 dBu, adjustable threshold
Unbalanced Line: -35 dBV
Switched trigger input:
Pull-to-ground, 0.1 mA pullup to 5VDC, 2.5VDC threshold | | Hold | Audio Hold Input:
Switch-selectable line-level, speaker-level or constant voltage
Audio Hold Threshold:
Line: -35 to 0 dBu, adjustable;
Speaker: 1 mW to 3 W (8Ω), 90 mV to 5V adjustable;
70/100V: 600 mV to 38V
Switched Hold Input:
Pull-to-ground, 0.1 mA pullup to 5VDC, 2.5VDC threshold | | Audio Detection | Bandwidth: 20 Hz to 5 kHz | | Low-Cut Filter | Switch-selectable -20 dB @ 50 Hz (reference 1 kHz) | | Control Output | Continuous for Mains Switching:
2 x SPDT Relay, Open-collector @ 25 mA
Momentary:
Off Pulse: Open-collector @ 25 mA for 1 second
On Pulse: Open-collector @ 25 mA for 1 second | | Open Collector Outputs | Open-collector external pull-up voltage:
24VDC maximum | | Control Input | Pull-to-ground, 0.1 mA pullup to 5VDC, 2.5VDC threshold
(toggles between standby and control outputs active) | | Override Inputs | Force on, force off
(overrides all other functions to force control outputs on or off) | | Delay | Control Outputs Turn-off Delay:
Switch-selectable 15, 30 or 60 minutes following loss of trigger and hold inputs | | Remote Control | Remote Control Input:
RJ45 for optional dedicated RDL remote controls
Remote Control Trigger Disable:
Switch-selectable to enable or disable a remote control from powering down and disabling the trigger inputs | | VCA | VCA Output:
0 to 10VDC (set by optional remote control) | | Indicators | Audio trigger LED (green)
External switched trigger LED (yellow)
Audio hold LED (green)
External switched hold LED (yellow)
Power, Bright = Control Outputs active
Dim = Control Outputs inactive | | Power Connections | Terminal block
2 x DC power jack | | Power Requirement | 24VDC @ 75 mA, 25 mA idle current | | Dimensions (L x H x W) | 8.5 x 1.42 x 3.25" (21.6 x 3.61 x 8.26 cm) | | | | Package Weight | 1.38 lb | | Box Dimensions (LxWxH) | 10.0 x 4.0 x 2.0" |
