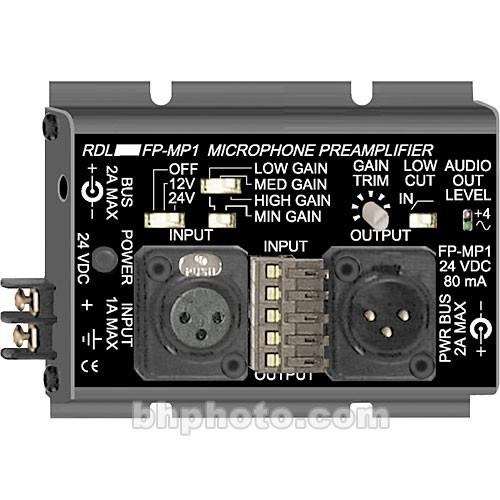

User Manual for RDL FP-MP1 - Microphone Preamplifier Click to enlarge the picture
Contents of the user manual for the RDL FP-MP1 - Microphone Preamplifier
- Product category: Microphone Preamps RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Microphone Preamps
|
User manual for the RDL FP-MP1 - Microphone Preamplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The FP-MP1 from RDL is a single channel, compact microphone preamp. The XLR and plug-in terminal block connections make the FP-MP1 perfect for both rack-mounted hardwired installations and remote use with standard audio cables. Low-noise discrete circuitry produces studio quality low noise performance in an economical preamplifier and a front-panel switch permits the installer to direct phantom voltage to the input connectors. This three-position switch provides 24V, 12V or phantom off. A second switch selects the input gain range thereby permitting the connection of standard or high output level microphones. - Compact, professional studio-quality low-noise microphone preamplifier
- Switchable internal phantom voltage
- XLR and terminal block connectivity
- Selectable input level ranges
- Adjustable gain with dual-LED metering
- Ultra-compact all metal construction
- Cabinet, shelf or rack mounting
UPC: 813721012500 In the Box RDL FP-MP1 - Microphone Preamplifier Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL FP-MP1 - Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL FP-MP1 Specs | Number of Channels | Single | | Inputs | 1 x XLR
1 x Terminal block | | Output | 1 x XLR
1 x Terminal block | | Phantom Power | 12V or 24V | | Multi Function | No | | Gain Range | Min: 19dB to 38dB (switch-selectable)
Low: 26dB to 45dB (switch-selectable)
Med: 36dB to 55dB (switch-selectable)
High: 46dB to 65dB (switch-selectable) | | Maximum Output Level | Not specified by manufacturer | | Frequency Response | 20Hz to 20kHz, +/-0.2dB | | Noise | <-72dB, 60dB gain, "A-weighted" | | Dimensions (WxDxH) | 4 7/8" x 3 1/4" x 1 3/8" | | Weight | Not specified by manufacturer | | Specialties | Requires ground-referenced, 24Vdc @ 100mA power source | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 4.9 x 4.25 x 2.75" |
