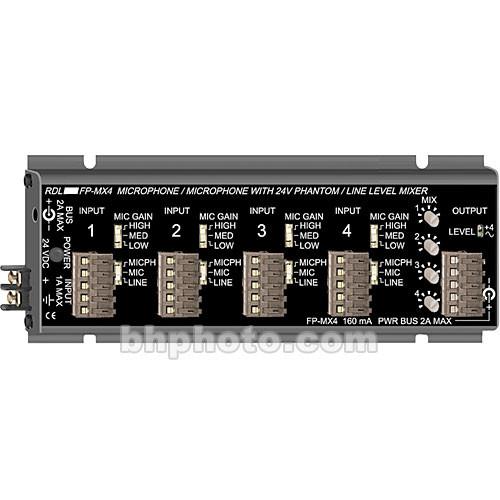

User Manual for RDL FP-MX4 Four-Channel Microphone and Line Audio Mixer Click to enlarge the picture
Contents of the user manual for the RDL FP-MX4 Four-Channel Microphone and Line
- Product category: Install Sound Mixers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Install Sound Mixers
|
User manual for the RDL FP-MX4 Four-Channel Microphone and Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The FP-MX4 Four-Channel Microphone and Line Audio Mixer from RDL is a mono audio mixer with switchable 24V phantom power, four identical inputs for microphone or line-level sources and provides balanced microphone and line-level outputs. It can be used to mix microphone and line-level at preset levels.The FP-MX4's connections are made via Euroblock connectors. This mixer is built with microphone and line-level selector switches and four level dials are used to control individual channel levels. Both microphone and line outputs are balanced and a dual-LED VU meter displays mixer output levels. Note: Requires a separately available 24 VDC power supply - Microphone / Line Selectable Inputs
- The inputs are assigned to accept microphone or line-level audio signals.
- Dedicated Microphone and Line Outputs
- Two balanced mono outputs are provided for sending microphone and line-level signals. Both outputs may be used simultaneously.
- Level Controls
- All four channel inputs feature level control dials.
UPC: 813721012524 In the Box RDL FP-MX4 Four-Channel Microphone and Line Audio Mixer Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL FP-MX4 Four-Channel Microphone and Line Audio Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL FP-MX4 Specs | Inputs | Mic: 4 x 2 kOhms Balanced, Switchable 24 V Phantom (IEC 61938: 2013)
Line: 4 x 10 kOhms Balanced (May Be Wired Unbalanced)
All with Euroblock Connectors | | Mic Input Level | Switch Selectable Ranges: -30 to -40 dBu, -40 to -50 dBu, < -50 dBu | | Line Input Level | +4 dBu | | Max Input/Output Gain | Mic: Off to 65 dB Gain (Adjustable Each Input)
Line: Off to 6 dB Gain (Adjustable Each Input) | | Frequency Response | Mic: 10 Hz to 30 kHz (
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
