User Manual for RDL FP-PA18 18 Watt Audio Power Amplifier with Power Supply Click to enlarge the picture
Contents of the user manual for the RDL FP-PA18 18 Watt Audio Power
- Product category: Standard Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Standard Amplifiers
|
User manual for the RDL FP-PA18 18 Watt Audio Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

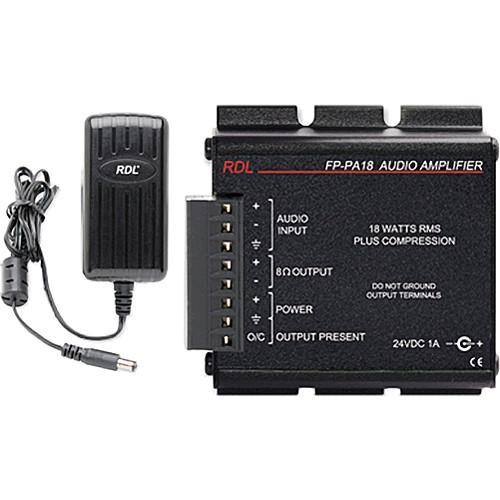

Product description The FP-PA18 18 Watt Audio Power Amplifier with Power Supply is a rugged, energy efficient and compact audio amplifier capable of driving a single 8 ohm speaker (or multiple speakers presented at 8 ohms). Its compact size and straightforward features make the FP-PA18 a viable choice for background music applications, paging audio, television audio applications and more.The amplifier's power output is 18 watts RMS and a single line input accepts balanced and unbalanced signal types. Its input gain dial compensates between balanced and unbalanced signals and an adjustable compressor/limiter controls dynamics that can ultimately lead to peak distortion and noise.The FP-PA18 features an energy-efficient and eco-friendly sleep mode that deactivates the output stage in the absence of audio signal, consuming less than 1W of mains power while powered. The sleep mode is triggered with an internal digital timer that may be set to activate at 5, 15 and 25 minute settings. Of course all this is in addition to the convenience, great sound and intuitive control the RDL FP-PA18 provides. - Automatic energy‑saving sleep mode
- Selectable sleep delay: off, 5, 15, 25 minutes
- Input / output detachable terminal block connections
- Line level balanced or unbalanced input
- Compressor/limiter controls clipping
- LED to indicate audio compression threshold
- Compressor produces maximized average output power
- Audio quality superior to standard amplifiers
- Ultra‑compact all metal construction
- High‑efficiency class D operation
- Thermal and short-circuit protection
UPC: 813721012661 In the Box RDL FP-PA18 18 Watt Audio Power Amplifier with Power Supply Power Supply 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL FP-PA18 18 Watt Audio Power Amplifier with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL FP-PA18 Specs | Inputs | Line level (+4 dBu nominal balanced; ‑10 dBV nominal unbalanced) | | Input Impedance | 10 kΩ balanced bridging; 5 kΩ unbalanced | | Gain | Single turn audio taper | | Maximum Input | Balanced: +23 dBu
Unbalanced: +21 dBV | | Minimum Input Level | Balanced: ‑18 dBu (to cross compressor threshold)
Unbalanced: ‑20 dBV (to cross compressor threshold) | | Frequency Response | 20Hz to 20kHz (+/‑ 1dB) | | THD & Noise | < 0.5% (20Hz to 20kHz) | | Compressor | Threshold 3 dB below rated output, automatically adjusting attack and release times | | Noise | < ‑72 dB (below 18 W RMS, +4 dBu input) | | CMRR | > 45 dB (50 Hz to 3 kHz) | | Output Power | 18 W RMS into 8 Ω | | Amplifier Type | Class D | | Audio Detector Threshold | 30 mW @ 20 Hz; 20 mW @ 30 Hz; 10 mW @ 50 Hz; 5 mW @ 65 Hz through 20 kHz
Signal Detector Output: Open collector, 5 mA | | Sleep Mode Power Consumption | < 1 W (amplifier and included power supply) | | Sleep Mode Delay | 5, 15 or 25 minutes (selectable)
Sleep Mode Disable: Selectable | | Active Mode Delay | < 150 ms after input audio detected | | Audio Detector Threshold | ‑50 dBu balanced, ‑52 dBV unbalanced | | Temperature | 0° C to 50° C Maximum | | Indicators | Red LED: COMP LED indicates compressor activity
Green LED: OUTPUT ACTIVE (controlled by output signal detector) Blue LED: POWER on; Dim: Sleep mode active; Bright: Amplifier active | | Power Supply | 24 VDC power supply current: 16mA (idle), 975 mA (max.), Ground‑referenced
Power Supply: 100 to 240VAC, 50‑60 Hz, 1A max.; 24VDC output to module | | Dimensions (HxWxL) | 1.15 x 3.25 x 3" (2.92 x 8.26 x 7.62cm) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.1 x 5.1 x 2.3" |
