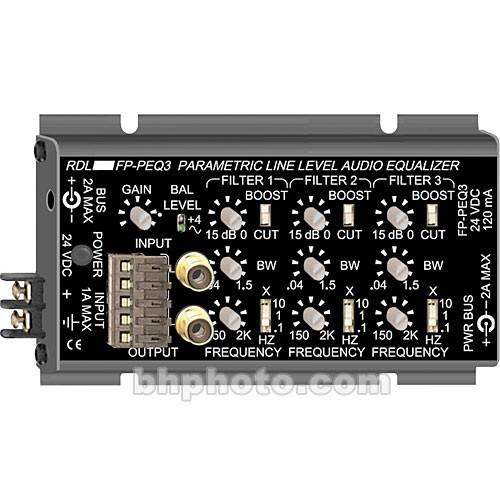

User Manual for RDL FP-PEQ3 - 3-Band Parametric Equalizer in Compact Enclosure Click to enlarge the picture
Contents of the user manual for the RDL FP-PEQ3 - 3-Band Parametric Equalizer
- Product category: Equalizers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Equalizers
|
User manual for the RDL FP-PEQ3 - 3-Band Parametric Equalizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The FP-PEQ3 from RDL is the ideal choice in many applications where parametric equalization or acoustic notch filtering is needed. The compact unit is a single-channel module featuring three identical independent filters. Each filter has separately adjustable frequency, boost/cut and bandwidth parameters. The frequency has three fully overlapping switch-selectable ranges: 15Hz to 200Hz, 150Hz to 2kHz and 1.5kHz to 20kHz. The boost/cut provides a +/-15dB range, switch-selectable to produce either cut or boost, making acoustic adjustment easier. Setting a given filter's boost/cut to minimum completely removes that filter from the circuit. The bandwidth allows adjustment from 0.04 octave to 1.5 octaves. - Highly versatile, compact three-band parametric equalizer
- Independent adjustment controls
- Adjustable bandwidth of 0.04 to 1.5 octaves
- Adjustable Frequency between 15Hz and 20kHz
- Overlapping frequency bands
- Boost or cut adjustable by +/-15dB
- Studio quality, low-noise performance
- Ultra-compact all metal construction
- Cabinet, shelf or rack mounting
UPC: 813721012517 In the Box RDL FP-PEQ3 - 3-Band Parametric Equalizer in Compact Enclosure Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL FP-PEQ3 - 3-Band Parametric Equalizer in Compact Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL FP-PEQ3 Specs | Filter Type | Parametric | | Number of Channels | Single | | Inputs | +4dBu balanced on plug-in terminal block
-10dBV unbalanced RCA phono jack | | Outputs | +4dBu balanced on plug-in terminal block
-10dBV unbalanced RCA phono jack | | Maximum Input Level | Not specified by manufacturer | | Frequency Bands | 15Hz to 200Hz
150Hz to 2kHz
1.5kHz to 20kHz Switch selectable, variable | | Bandwidth | 0.04 octave to 1.5 octave (adjustable) | | Range (Boost/Cut) | +/-15dB | | Maximum Output Level | Not specified by manufacturer | | Frequency Response | 10Hz to 20kHz, +/-0.25dB (filters flat) | | Dynamic Range | Not specified by manufacturer | | Noise | <-90dB (below +4dBu) | | Dimensions (WxDxH) | 5 11/16" x 3 1/4" x 1 7/16" | | Weight | Not specified by manufacturer | | Specialties | Requires ground-referenced, 24Vdc @ 100mA power source | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 7.2 x 5.1 x 2.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
