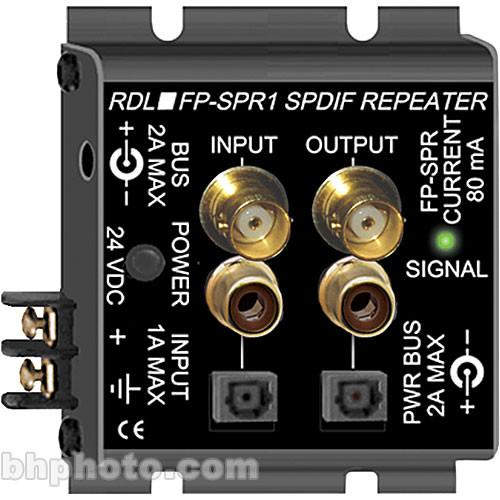

Product description The FP-SPR1 SPDIF Repeater and Amplifier from RDL is a single-channel module designed to perform conversion between BNC, phono, and optical SPDIF connector types. Only one of the three outputs or a combination of the coaxial and optical outputs may be used simultaneously. A front-panel LED indicates the status of input and output signals. Power connections are made via a full-size barrier block terminal or a DC power jack located on the first end panel. A second DC power jack is included on the second end panel to allow the connection of additional FLAT-PAK modules (sold separately). - SPDIF Signal Conversion & Recovery
- This device performs conversion between SPDIF connector types and recovery of low SPDIF signal levels.
- SPDIF Inputs & Outputs
- An input and output for each conventional SPDIF format is included: BNC, phono, and optical.
- LED Indicator
- The front-panel includes an LED that indicates the status of input and output signals.
- Power
- This unit may be powered via its full-size barrier block terminals or DC power jack.
- Expansion
- A second DC power jack is included to allow the connection of additional FLAT-PAK modules.
UPC: 813721012494 In the Box RDL FP-SPR1 SPDIF Repeater and Amplifier Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL FP-SPR1 SPDIF Repeater and Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL FP-SPR1 Specs | Material of Construction | Metal, Plastic | | Inputs | 1 x BNC Coaxial (75 Ohms)
1 x Phono Coaxial (75 Ohms)
1 x Optical | | Input Level | 100 mV to 2.5 V p-p (Coaxial) | | Output | 1 x 75 Ohms BNC Coaxial
1 x 75 Ohms Phono Coaxial
1 x Optical | | Output Level | 500 mV p-p (Coaxial) | | Frequency Range | 28 to 48 kHz | | Indicators | 1 x Signal Present LED | | Jitter | < 200 pS (Input Signal 200 mV p-p or Greater)
< 1 nS (Input Signal 100 mV to 200 mV p-p) | | Ambient Operating Environment | 14 to 131°F / -10 to 55°C | | Power Requirement | 24 VDC @ 80 mA, Ground-Referenced
May Operate from 12 VDC in Standalone Installations | | Dimensions (H x W x D) | 1.34 x 3.25 x 2.82" / 3.40 x 8.26 x 7.16 cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 4.9 x 4.3 x 2.3" |
