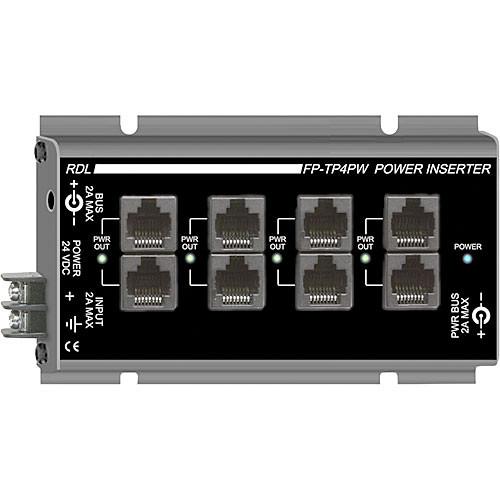

Product description The RDL FP-TP4PW 4 Output Power Inserter is a four output power inserter compatible with RDL twisted pair products. The FP-TP4PW is powered from a 24 VDC power supply using either the power jack or the detachable terminal block. Four dual-RJ45 jack sets are provided to connect remote twisted pair senders and receivers. Power is provided to all modules connected to the RJ45 jacks. Signal pairs feed through the associated RJ45s. The voltage feeding each dual-RJ45 jack set is separately protected by an automatically resetting fuse. The FP-TP4PW is ideal for powering remote twisted pair modules from a central equipment board. - Module power is indicated by a front-panel LED.
- A power LED is associated with each dual-RJ45 jack set, facilitating identification of wiring faults.
In the Box RDL FP-TP4PW 4 Output Power Inserter for Twisted Pair Units 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL FP-TP4PW 4 Output Power Inserter for Twisted Pair Units in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL FP-TP4PW Specs | Input | 24 VDC (@ 25 mA) or Full-Size Terminal-Block | | Output | 4x pairs of RJ45 | | Compatibility | CAT-5 audio senders and receivers | | Dimensions | 5.8 x 1.7 x 2.2" (15 x 4.3 x 5.59 cm) WxHxD | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.79 lb | | Box Dimensions (LxWxH) | 7.0 x 4.375 x 2.25" |
