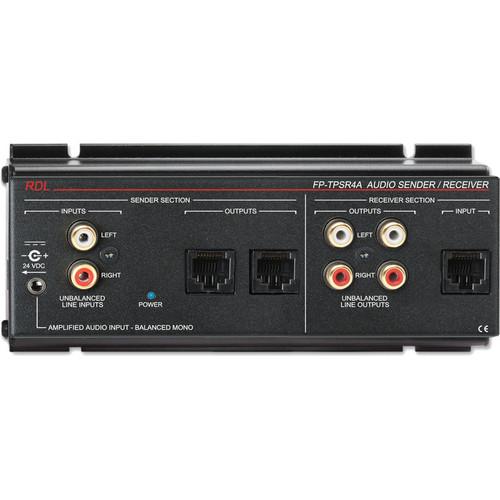

User Manual for RDL FP-TPSR4A Format-A Two-Pair Audio Sender Receiver Click to enlarge the picture
Contents of the user manual for the RDL FP-TPSR4A Format-A Two-Pair Audio Sender
- Product category: Video Extenders & Repeaters RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Video Extenders & Repeaters
|
User manual for the RDL FP-TPSR4A Format-A Two-Pair Audio Sender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL FP-TPSR4A Format-A Two-Pair Audio Sender/Receiver provides the interface between a hotel room television and listening stations and audio input panels. The Sender Section is an RDL Format-A audio sender that accepts either a stereo line-level or 1 to 3W mono amplified fixed-level signal, usually from a commercial hospitality equipped TV. The FP-TPS4A unit distributes the source signal to two Format-A RJ45 output jacks to feed multiple Format-A receivers. The input accepts either an unbalanced stereo or an amplified mono input. The FP-TPSR4A unit sends the unbalanced left and right sources over balanced twisted-pair cables on pairs B and C. If a mono amplified signal is connected, the mono source is fed to both pairs B and C. Audio circuitry is active balanced for excellent audio fidelity and low-noise performance. The Receiver Section is an RDL Format-A receiver with an RJ45 input fed by sender modules such as the D-TPS8A stereo input panel for a portable computer or media player. Audio signals received on pairs B and C are amplified to feed two stereo RCA connectors at a standard -10 dBV consumer level. One of these outputs connects to the TV AUX input; the other is available to feed the input of a stereo amplifier in the room. The FP-TPSR4A Sender/Receiver is normally mounted behind a TV where AC power is available. A 24VDC power supply, available separately, provides power to the FP-TPSR4A unit and to the connected sending & receiving modules. It is not necessary to connect power supplies to the connected senders and receivers, facilitating installation. A front-panel blue LED is illuminated when the FP-TPSR4A unit is receiving and distributing 24VDC to all the three RJ45 jacks. The distributed output DC voltage is short-circuit protected by an automatically resetting fuse. A power fault on either output jack causes the blue LED to extinguish. The FP-TPSR4A Sender/Receiver is suited for guest room installations with bedside and restroom listening stations. The inputs and outputs are fully compatible with all RDL Format-A receivers. The unit features automatic fused power, hum rejection, low noise, and low distortion for designers and installers looking to work with twisted pair products. General - Combination sender and receiver module
- Suitable for hotel room audio systems
- Distributes power to all connected modules
- Automatically resetting fuse for output voltage
- Compact all-metal construction
Sender Section - Format-A sender from TV fixed audio output
- Sends left and right audio channels
- Unbalanced stereo input from fixed level audio source
- Balanced audio input from mono amplifier
- High quality audio distributed to each RJ45 output
- Two Format-A outputs on RJ45
Receiver Section - Format-A receiver compatible with 2-pair senders such as D-TPS8A (not included)
- Two -10 dBV stereo unbalanced outputs on RCA connectors
- L (Left) output from Pair B; R (Right) from pair C
- The output feeds the AUX input of the TV
In the Box RDL FP-TPSR4A Format-A Two-Pair Audio Sender/Receiver Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL FP-TPSR4A Format-A Two-Pair Audio Sender Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL FP-TPSR4A Specs | | | Inputs | 3, 20 kΩ unbalanced (2, left and right); 100 kΩ balanced (mono amplified) | | Input Connections | Phono jack (Unbalanced); mini-jack (Balanced) | | Input Level | -10 dBV unbalanced; 1 W (8 Ω) to 10 W (8 Ω) balanced, 2 W nominal | | Twisted Pair | Format-A Signal Pairs Used: 2, B, C | | Output | RDL TP Format-A | | Output Connection | RJ45 | | Frequency Response | 10 Hz to 50 kHz (± 0.1 dB) | | THD + N | <0.05% | | Noise | Below +4 dBu: <-85 dB | | Crosstalk | <-85 dB (10 Hz to 10 kHz); <-80 dB (10 to 20 kHz) | | Headroom | Above +4 dBu: >18 dB | | | | Input | RDL Format-A | | Input Connections | RJ45 | | Twisted Pair | Format-A Signal Pairs Used: 2, B (Left), C (Right) | | Output | 100 Ω unbalanced | | Output Connections | 2, RCA phono stereo | | Frequency Response | 10 Hz to 40 kHz (± 0.1 dB) | | THD + N | <0.005% | | Noise | Below +4 dBu: <-90 dB | | Crosstalk | <90 dB (1 kHz); <75 dB (20 Hz to 20 kHz) | | Headroom | Above -10 dBV: >20 dB | | CMRR | >65 dB (50 Hz to 150 Hz) | | | | Indicators | Power (Input and outputs active) | | Power Connections | Power jack (locking) | | Power Requirement | 24 VDC @ 35 mA plus connected loads | | Current (Maximum) | Load Current: 500 mA | | Dimensions (L x W x H) | 6.58 x 3.25 x 1.68" (16.71 x 8.25 x 4.26 cm) | | Weight | 1.00 lb (0.45 kg) | | | | Package Weight | 1.005 lb | | Box Dimensions (LxWxH) | 7.0 x 4.375 x 2.25" |
