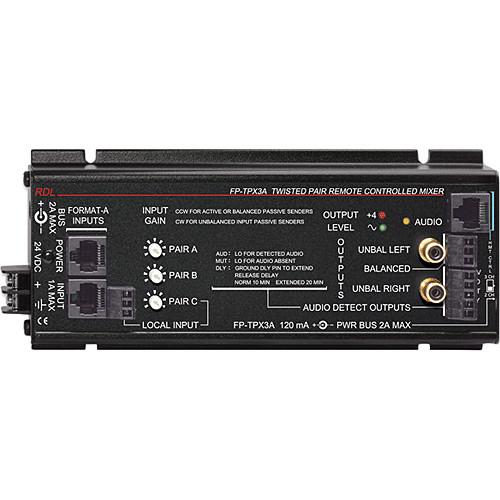

User Manual for RDL FP-TPX3A Format-A Twisted Pair Remote Controlled Mixer Click to enlarge the picture
Contents of the user manual for the RDL FP-TPX3A Format-A Twisted Pair Remote
- Product category: Install Sound Mixers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Install Sound Mixers
|
User manual for the RDL FP-TPX3A Format-A Twisted Pair Remote contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL FP-TPX3A Format-A Twisted Pair Remote Controlled Mixer is a 3-channel audio mixer used for controlling multiple sound sources within zones in commercial PA and paging audio systems. The FP-TPX3A features 3 inputs that may be used as balanced or unbalanced, microphone or line level connections, and phantom power is sent to microphones and sources that require it. Connections are made over Format-A twisted pair inputs, and a pair of unbalanced RCA outputs are also featured. The Audio Detect Outputs feature an LED that detects output signal, as well as trigger outputs that automatically start/shut down compatible audio gear, in order to maximize energy efficiency and preserve the life span of the connected audio sources. - 3‑Channel remote‑controlled audio mixer
- VCA level control for each input pair
- Format‑A twisted pair inputs
- One detachable balanced and two RCA unbalanced mono outputs
- Twisted pair interconnection to remote control
- Directly controlled by RDL remote controls with 2 or 3 channels
- Local input available if only two twisted pair inputs used
- Paging source may connect to local input
- Front‑panel gain trim matches active or passive Format‑A senders
- Dual‑LED VU meter displays mixer output level
- Audio presence detector controls open‑collector outputs
- Detector outputs intended to enable power amplifiers or system power
- Energy savings possible using detector outputs
- Selectable 10 or 20 minute detector release delay
UPC: 813721012647 In the Box RDL FP-TPX3A Format-A Twisted Pair Remote Controlled Mixer 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL FP-TPX3A Format-A Twisted Pair Remote Controlled Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL FP-TPX3A Specs | Inputs | RDL FORMAT‑A; Balanced line level
Connections: RJ45 (FORMAT‑A); Detachable Terminal Block (Pair C) | | Outputs | 150 Ω balanced; 1 kΩ unbalanced (2)
Connections: Detachable Terminal Block (balanced); RCA Phono Jacks (unbalanced) | | Output Level | +4 dBu balanced, ‑10 dBV unbalanced | | Frequency Response | 20Hz to 20kHz (+/‑ 0.25 dB) | | THD | < 0.05% (20 Hz to 20 kHz); <0.02% (1 kHz) | | Noise | < ‑100 dB (all channels off); <‑75 dB (any channel on); <‑70 dB (all channels on) | | Headroom | > 18 dB | | CMRR | > 80 dB (50 Hz to 150 Hz) | | Attenuation / Gain | VCA attenuation: >90 dB (each input, remote control volume off) | | Indicators | Dual‑LED VU meter (2); Audio present (threshold = 35 dB below +4 dBu output) | | Power | Power Connections (3): Terminal block; DC power jack (2)
Power Requirement: 24VDC @ 120 mA plus connected FORMAT‑A sender currents | | Dimensions (HxWxL) | 1.42 x 3.25 x 8.14" (3.61 x 8.26 x 20.68cm) | | | | Package Weight | 1.16 lb | | Box Dimensions (LxWxH) | 8.563 x 3.375 x 1.5" |
