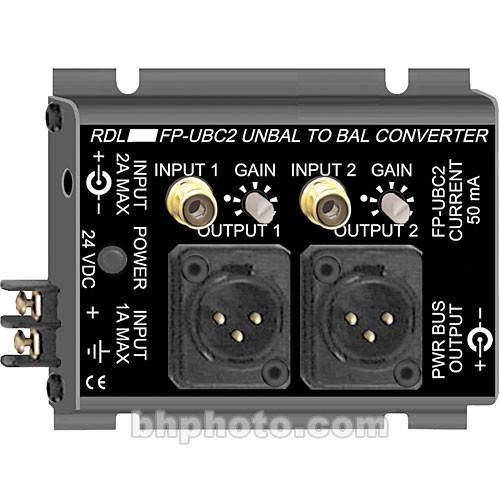

User Manual for RDL FP-UBC2 2-Channel Unbalanced to Balanced Audio Converter Click to enlarge the picture
Contents of the user manual for the RDL FP-UBC2 2-Channel Unbalanced to Balanced
- Product category: Accessories RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Accessories
|
User manual for the RDL FP-UBC2 2-Channel Unbalanced to Balanced contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL FP-UBC2 2-Channel Unbalanced to Balanced Converter is the ideal choice for connectorized conversion from unbalanced to balanced audio. This module features two identical channels. Gold-plated phono jacks are used for each unbalanced input channel; each balanced channel is connected through an XLR jack. A gain trim potentiometer is provided for each channel producing a +4 dBu balanced output for a -10 dBV unbalanced input and is adjustable -5 dB to +10 dB from the normal gain. Thus,a +4 dBu output signal is possible from input signals ranging from -20 dBV to -5 dBV. - Stereo Unbalanced toBbalanced Audio
- Need to send your unbalanced audio work to a balanced source? This unit's gold contact RCA jacks are utilized for the unbalanced input channels. Each output is balanced, connected through gold-plated XLR connectors. A level trim potentiometer is provided for each channel.
- Superior Sound Quality
- The FP-UBC2 circuitry features low noise and distortion, excellent headroom and crosstalk performance with a connectorized audio converter, a level trim potentiometer, low noise and distortion at less than .005%.
UPC: 813721012418 In the Box RDL FP-UBC2 2-Channel Unbalanced to Balanced Audio Converter 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL FP-UBC2 2-Channel Unbalanced to Balanced Audio Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL FPUBC2 Specs | Input Impedance | 10 k Ohms | | Output Impedance | 150 Ohms balanced, drives 600 Ohms or 10 k Ohm lines | | Frequency Response | 10 Hz to 40 kHz (+/- 0.1 dB) | | Input Connectors | 2 x RCA | | Output Connector | 2 x XLR | | Weight | Not Specified by Manufacturer | | Dimensions | 3.25 x 1.3 x 4.1" (in) (8.3 x 3.3 x 10.3cm) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 4.8 x 4.3 x 2.2" |
