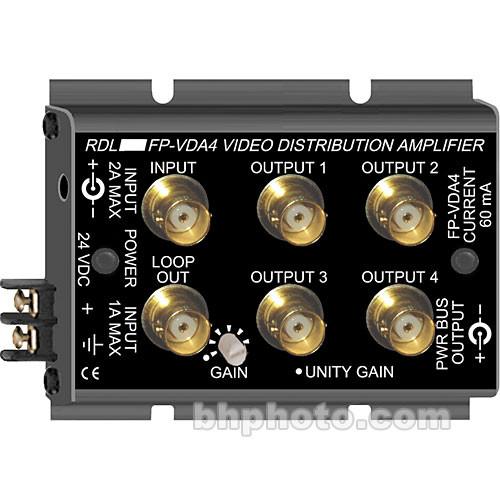

Product description The RDL FP-VDA4 is a 1x4 Composite Video distribution amplifier; it accepts one Composite Video signal on a BNC connector and outputs four Composite Video signals. It features gain control and a flat pack housing. Note: Power Supply Purchased Separately - Gain Control
- The video gain control is accessed from the top panel via a potentiometer.
- FLAT-PAK
- RDL's FLAT-PAK all metal construction offers a compact housing that can be mounted to a variety of surfaces.
- Power Output
- A power output bus is offered for running many FLAT-PAKs from the same supply.
UPC: 813721012401 In the Box RDL FS-VDA4 1x4 Composite Video Distribution Amplifier - BNC Connectors, Gain Control 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL FS-VDA4 1x4 Composite Video Distribution Amplifier - BNC Connectors, Gain Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL FP-VDA4 Specs | Input | Composite Video, Looping, 1 Vpp @ 75 ohms, on a BNC connector | | Output | Composite Video x4, 1 Vpp @ 75 ohms, on a BNC connector | | Video Bandwidth | 10 MHz | | Video Signal-to-Noise Ratio | 75 dB | | Differential Phase | 0.1° | | Differential Gain | 0.1% | | Video Control | Video Gain | | Coupling | Not Specified by Manufacturer | | Power Source | 24 VDC from an Optional Power Supply | | Dimensions | 3.25 x 4.43 x 1.34"
8.26 x 11.25 x 3.40cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 4.8 x 4.5 x 2.45" |
