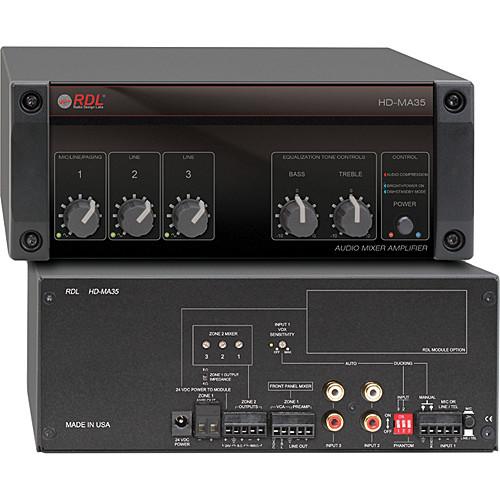

User Manual for RDL HD-MA35 35-Watt Mixer Amplifier with Power Supply Click to enlarge the picture
Contents of the user manual for the RDL HD-MA35 35-Watt Mixer Amplifier with
- Product category: Mixer/Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Mixer/Amplifiers
|
User manual for the RDL HD-MA35 35-Watt Mixer Amplifier with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL HD-MA35 35-Watt Remote Mixer Amplifier is a versatile audio amplifier, mixer and paging system targeted for background music, call on-hold music, and commercial audio applications. The amplifier features two zones with Zone 1 delivering 35 watts and support for balanced and unbalanced inputs, and audio output to 4- and 8-ohm speakers. Zone 2 is reserved for an 8-ohm speaker or 600-ohm telephone equipment, and capable of 4 watts.The unit is built to high energy efficiency standards with automatic power up when signal is present, and a threshold adjustable "sleep mode" that powers down the amplifier when there is no audio signal. The HD-MA35 prioritizes paging audio with adjustable muting and ducking functions that lower or interrupt background music during pages. The amplifier is more than ideally suited for commercial retail, offices, warehouses, restaurants, bars, and various other environments that require a versatile and efficient audio paging amplifier. - Three inputs with individual front-panel volume controls
- Bass and Treble tone controls
- Designed for background music with paging and music-on-hold
- Master volume VCA controlled with remote adjustment capability
- Manual or automatic (VOX) priority ducking
- Balanced inputs and amplified outputs on detachable terminal blocks
- Unbalanced inputs and outputs on RCA jacks
- High-efficiency Class D operation
UPC: 813721010766 In the Box RDL HD-MA35 35-Watt Mixer Amplifier with Power Supply Power Supply 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL HD-MA35 35-Watt Mixer Amplifier with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL HD-MA35 Specs | Amplifier | Zone 1 (Main): 35 W RMS, front-panel mixer (user controls)
Zone 2: 2 W RMS (8 Ohms), rear-panel mixer (trimmers) | | Audio Inputs | Balanced, mic or line switch selectable on terminal block; 2, unbalanced stereo summing inputs on RCA jacks | | Maximum Input Level | Mic Input: -11.5 dBu; Balanced line input: + 19 dBu; Unbalanced Inputs: + 9 dBV (+15.5 dBV, one input); (for 1% THD+N at output) | | Phantom Power | 24 VDC (IEC 1938: 1996-12), switch-selectable for the mic input | | Attenuation / Gain |
Ducking/Muting Actuation: Automatic (Input 1 VOX: rear-panel adjustable signal threshold with LED indicator) or Manual (contact closure to ground) Ducking/Muting Release Delay: 4 seconds, nominal
Ducking/Muting: Switch-selectable for inputs 2 and/or 3, 25 dB ducking attenuation, nominal | | Power | 24 VDC, 100 mA maximum, ground-referenced
Power Supply (included): 100 to 240 VAC, 50-60 Hz, 50 W; 24 VDC output to amplifier chassis | | Input Level | (to cross compressor threshold equaling 23 W amplified output)
Mic Input: -50 dBu (2.5 mV), (front-panel gain at max.)
Balanced line input: -21 dBu (70 mV), (front-panel gain at max.)
Unbalanced Inputs: -15 dBV (180 mV, front-panel gain at max., both inputs driven) | | Noise | Noise (line output): Mic input: -68 dB, Balanced line input: -72 dB (below compressor threshold at max gain); Unbalanced Inputs: <-85 db (max gain)
Noise (amplified outputs): Mic input: -68 dB, Balanced line input: -72 dB (below compressor threshold at max gain); Unbalanced Inputs: <-75 dB (max gain) | | THD | < 0.5% (1 kHz at compressor threshold, main amp output); < 0.25% (line output, main) | | CMRR | > 50 dB (50 Hz to 120 Hz); Balanced line input: > 80 dB (50 Hz to 120 Hz, transformer-coupled input) | | Compressor | Threshold 2 dB below rated output, automatically adjusting attack and release times | | Frequency Response | Frequency Response (mixer): Mic to line output: ±1.5 dB (40 Hz to 25 kHz); Balanced line input to line output: ±1 dB (20 Hz to 20 kHz); Unbalanced line input to line output: ±0.5 dB (20 Hz to 20 kHz)
Frequency Response (Zone 1 amplifier): ±1 dB (50 Hz to 20 kHz) Frequency Response (Zone 2 amplifier): 8 Ohm: ±1.5 dB (50 Hz to 20 kHz); 600 Ohm: ±1.5 dB (30 Hz to 18 kHz) | | Tone Controls | ±10 dB @ 10 kHz, ±9 dB @ 100 Hz (front panel) with center detent | | Audio Outputs | Audio Outputs x2: +4 dBu nominal (1.23 V), balanced, terminal block (FLAT); 0 dBu nominal balanced, terminal block (zone 2 mixer, 600 Ohm output)
MOH Output: 0 dBu nominal (775 mV), 600 Ohm transformer-isolated, >16 dB headroom | | Amplifier Output | Power Amplifier Outputs (2): Zone 1 (main, <1% THD+N): 35 W RMS (4 Ohms), 32 W (8 Ohms) on detachable terminal block (switch-selectable 4 or 8 Ohm impedance); Zone 2: 2 W (8 Ohms, on detachable terminal block) | | Indicators | Front panel: Signal present (3; 1 per input, green), Compressor activity (red), Power (bright=on, dim=standby, blue); Rear-panel: Ducking/muting threshold (yellow) | | Controls | Front-panel controls (6): Zone 1 (main) mixer level controls (3, inputs 1 through 3), EQ (2, bass and treble), Power (latching pushbutton, on/standby)
Rear-panel controls (9): Mic/Line switch (Input 1), Input 1 ducking/muting detector sensitivity trimmer, Phantom voltage switch (Input 1), Ducking control switches (2, to duck inputs 2 and/or 3), Zone 2 mixer level controls (3, inputs 1 through 3), HD-MA35: Output impedance switch 4 or 8 Ohms | | Temperature | 32 to 122°F Maximum; 68°F Recommended (0 to 50°C Maximum; 20°C Recommended) | | Dimensions (HxWxD) | 3.5 x 8.5 x 6.75" (8.89 x 21.6 x 17.1 cm) | | Weight | 4.5 lb (2 kg) | | | | Package Weight | 5.1 lb | | Box Dimensions (LxWxH) | 11.9 x 9.5 x 4.2" |
