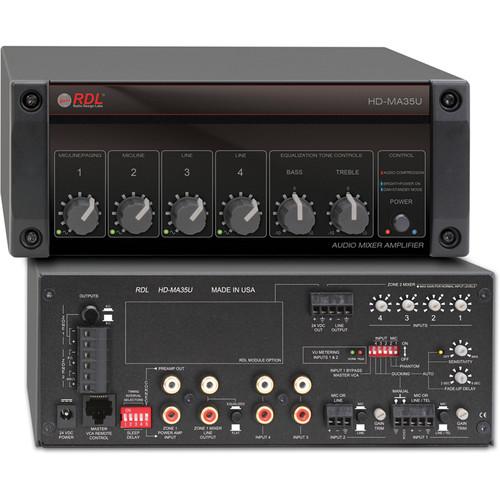

User Manual for RDL HD-MA35U 35-Watt Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the RDL HD-MA35U 35-Watt Mixer Amplifier
- Product category: Mixer/Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Mixer/Amplifiers
|
User manual for the RDL HD-MA35U 35-Watt Mixer Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The HD-MA35U 35-Watt Mixer Amplifier from RDL features dual-zoned amplifier outputs and is designed for use in applications requiring background music with paging or music on hold functionality. The unit has 4 audio inputs each with independent volume controls, including 2 mic- or line-level inputs on terminal blocks and 2 stereo RCA line inputs that are each summed to mono.
The HD-MA35U features 2 mixers. Its Zone 1 mixer provides 35 watts of amplifier output for background music use, while the Zone 2 mixer has 4 watts of output on a 600 Ohm connection for music on hold scenarios. Additionally, a line-level output allows for connectivity to a separate power amplifier. - Four inputs with individual front-panel volume controls
- Bass and Treble tone controls
- Designed for background music with paging and music-on-hold
- Master volume VCA controlled with remote adjustment capability
- Manual or automatic (VOX) priority ducking
- Balanced inputs and amplified outputs on detachable terminal blocks
- Unbalanced inputs and outputs on RCA jacks
- Automatic sleep mode for energy savings
In the Box RDL HD-MA35U 35-Watt Mixer Amplifier PS-24V2A 24VDC Switching Power Supply with North American Cord dfccxyfwvqrvcwue Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL HD-MA35U 35-Watt Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL HD-MA35U Specs | Zones | Amplifier Zones:
Zone 1 (Main): 35 W RMS, remote-controlled mixer (3 user controls) with paging input level control on front panel
Zone 2: 4 W RMS (8 Ω), rear-panel mixer (trimmers) | | Audio Inputs | 2x balanced, mic or line switch selectable on terminal blocks
2x unbalanced stereo summing inputs on RCA jacks
1x unbalanced amp in on RCA jack | | Gain Adjustment | Inputs 1 and 2: Rear-panel single-turn trimmer | | Maximum Input Level | Mic Inputs: -9 dBu
Balanced Line Inputs: + 20 dBu
Unbalanced Inputs: + 5 dBV (+11 dBV, one input), (for 1% THD+N at output) | | Phantom Power | 24 VDC (IEC 61938: 2013), switch-selectable for each mic input | | Ducking | Ducking/Muting Actuation: Automatic (Input 1 VOX: rear-panel adjustable signal threshold with LED indicator) or Manual (contact closure to ground)
Ducking/Muting Release Delay: Rear-panel single-turn trimmer, adjustable 2 to 6 seconds | | Effects Loop | Unbalanced RCA jacks (preamp output from main mixer, input to power amplifier) | | Power Output | External RDL Module Power Output: 24 VDC, 100 mA maximum, ground-referenced | | Input Level | To Cross Compressor Threshold Equaling 23 W Amplified Outputs:
Mic Inputs: -50 dBu (2.5 mV), (front panel and rear trimmer at max.)
Balanced Line Inputs: -21 dBu (70 mV), (front panel and rear trimmer at max.)
Unbalanced Inputs: -15 dBV (180 mV), (front panel and rear trimmer at max., both inputs driven) | | Noise | Line or Amplified Outputs:
Mic or Balanced Line Inputs: -70 dB (below compressor threshold at max gain)
Unbalanced Inputs: <-75 dB (max gain) | | THD + N | < 0.5% (1 kHz at compressor threshold, main amp output); < 0.1% (line output, main) | | CMRR | Mic Inputs: > 50 dB (50 Hz to 120 Hz)
Balanced Line Inputs: > 80 dB (50 Hz to 120 Hz, transformer-coupled input) | | Compressor | Threshold 2 dB below rated output, automatically adjusting attack and release times | | Frequency Response | Mixer:
Mic to Line Output: ±1.5 dB (40 Hz to 25 kHz); Balanced line input to line output: ±1 dB (20 Hz to 20 kHz); Unbalanced line input to line output: ± 0.5 dB (20 Hz to 20 kHz)
Amplifiers:
50 Hz to 20 kHz ±1 dB | | Tone Controls | ±10 dB @ 10 kHz, ±9 dB @ 100 Hz (front-panel) with center detent | | Audio Output | -10 dBV nominal (316 mV), dual mono unbalanced RCA (main mixer; FLAT or EQUALIZED, switch-selectable on rear panel)
0 dBu nominal balanced, terminal block (zone 2 mixer) | | MOH Output | 0 dBu nominal (775 mV), 600 Ω transformer-isolated, 16 dB headroom | | Amplifier Output | Zone 1 (main, <1% THD+N): 35 W RMS (4 Ω), 32 W (8 Ω) on detachable terminal block (switch-selectable 4 or 8 Ω impedance); Zone 2: 4 W (8 Ω, on detachable terminal block) | | Indicators | Front-Panel: Signal present (4; 1 per input, green), Compressor activity (red), Power (bright=on, dim=standby, blue); Rear-Panel: dual-LED VU meter (for inputs 1 and 2, green/red), Ducking/muting threshold (yellow) | | VCA | Zone 1 (main) inputs 2, 3 and 4, 0 to 10 VDC control, RJ45 (compatible with RDL VCA wall controls) | | Controls | Front-Panel Controls:
Zone 1 (main) paging level control (input 1 to 4), EQ (2, bass and treble), Power (momentary pushbutton, toggle on/standby)
Rear-Panel Controls:
Gain trimmers (2, input 1 and 2), Mic/Line switch (2, input 1 and 2), Zone 1 line output pre/post-EQ switch, Effects loop bypass switch, Sleep (standby) mode delay (4 binary switches), Input 1 ducking/muting detector sensitivity trimmer, Phantom voltage switches (2, input 1 and 2), Ducking control switches (3, to duck inputs 2, 3, and/or 4), Tone control paging bypass (includes or excludes input 1 from tone controls), Zone 2 mixer level controls (4, inputs 1 through 4) | | Sleep Mode | Power Consumption: < 1 W (amplifier and included power supply)
Delay: 10 minutes to 2 hours (switch-selectable in 10 minute increments)
Disable: Selectable | | Active Mode Delay | 2 seconds (nominal) after input audio detected | | Audio Detector Threshold | -80 dBu mic (at max input gain), -55 dBu balanced line (at max input gain), -42 dBV unbalanced | | Ambient Operating Environment | -32° to 122°F (0° to 50°C) Maximum; 68°F (20°C) Recommended | | Dimensions (LxWxD) | 8.6 x 3.3 x 9" (21.9 x 8.3 x 22.8 cm) | | | | Package Weight | 8.105 lb | | Box Dimensions (LxWxH) | 17.75 x 9.125 x 3.938" |
