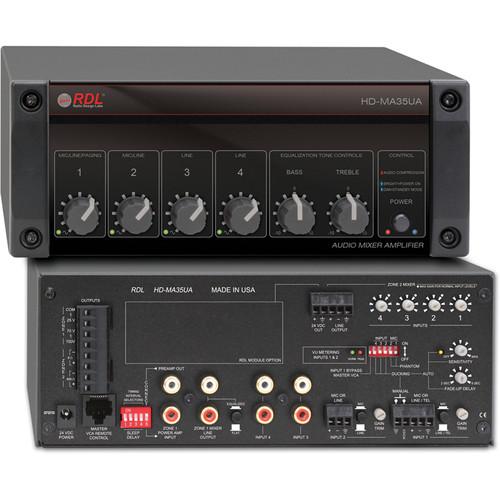

User Manual for RDL HD-MA35UA 35-Watt Remote Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the RDL HD-MA35UA 35-Watt Remote Mixer Amplifier
- Product category: Mixer/Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Mixer/Amplifiers
|
User manual for the RDL HD-MA35UA 35-Watt Remote Mixer Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The HD-MA35UA 35-Watt Mixer Amplifier from RDL features dual-zoned amplifier outputs and is designed for use in applications requiring background music with paging or music-on-hold functionality. The unit has 4 audio inputs, each with independent volume controls, including 2 mic- or line-level inputs on terminal blocks and 2 stereo RCA line inputs that are each summed to mono. The HD-MA35UA has two output power amplifier zones, 35 watts (Zone 1) and 4 watts (Zone 2), and are driven from high-efficiency Class D amplifier stages. The mixer and amplifier sections all normally shut down (standby "sleep" model) when audio is absent, and automatically turn on when needed.
The HD-MA35UA features 2 mixers. Its Zone 1 mixer provides 35 watts of amplifier output for background music use, while the Zone 2 mixer has 4 watts of output on a 600 ohm connection for music-on-hold scenarios and/or background music in a small zone equipped with an 8 ohm speaker. Additionally, a line-level output allows for connectivity to a separate power amplifier. This unit comes with a USA power supply. - Four inputs with individual front-panel volume controls
- Bass and Treble tone controls
- Designed for background music with paging and music-on-hold
- Master volume VCA controlled with remote adjustment capability
- Manual or automatic (VOX) priority ducking
- Balanced inputs and amplified outputs on detachable terminal blocks
- Unbalanced inputs and outputs on RCA jacks
- Automatic sleep mode for energy savings
- Analog compressor/limiter for Zone 1
UPC: 813721010711 In the Box RDL HD-MA35UA 35-Watt Remote Mixer Amplifier (USA Power Supply) PS-24V2A 24VDC Switching Power Supply with North American Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL HD-MA35UA 35-Watt Remote Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL HD-MA35UA Specs | Zones | Amplifier Zones:
Zone 1 (Main): 35 W RMS, front-panel mixer (user controls)
Zone 2: 4 W RMS (8 Ω), rear-panel mixer (trimmers) | | Audio Inputs | 2x balanced, mic or line switch selectable on terminal blocks
2x unbalanced stereo summing inputs on RCA jacks
1x unbalanced amp in on RCA jack | | Gain Adjustment | Inputs 1 and 2: Rear-panel single-turn trimmer | | Maximum Input Level | Mic Inputs: -9 dBu
Balanced line inputs: + 20 dBu
Unbalanced Inputs: + 5 dBV (+11 dBV, one input), (for 1% THD+N at output) | | Phantom Power | 24 VDC (IEC 61938: 2013), switch-selectable for each mic input | | Ducking | Ducking/Muting Actuation: Automatic (Input 1 VOX: rear-panel adjustable signal threshold with LED indicator) or Manual (contact closure to ground)
Ducking/Muting Release Delay: Rear-panel single-turn trimmer, adjustable 2 to 6 seconds
Ducking/Muting: Switch-selectable for inputs 2, 3 and/or 4, 25 dB ducking attenuation, nominal | | Effects Loop | Unbalanced RCA jacks (preamp output from main mixer, input to power amplifier) | | Power Output | External RDL Module Power Output: 24 VDC, 100 mA maximum, ground-referenced | | Input Level | To Cross Compressor Threshold Equaling 23 W Amplified Output:
Mic Inputs: -50 dBu (2.5 mV), (front panel and rear trimmer at max.)
Balanced Line Inputs: -21 dBu (70 mV), (front panel and rear trimmer at max.)
Unbalanced Inputs: -15 dBV (180 mV), (front panel and rear trimmer at max., both inputs driven) | | Noise | Line or Amplified Outputs:
Mic or Balanced Line Inputs: -70 dB (below compressor threshold at max gain)
Unbalanced Inputs: <-75 dB (max gain) | | THD + N | < 0.5% (1 kHz at compressor threshold, main amp output); < 0.1% (line output, main) | | CMRR | Microphone Inputs: > 50 dB (50 Hz to 120 Hz)
Balanced Line Inputs: > 80 dB (50 Hz to 120 Hz, transformer-coupled input) | | Compressor | Threshold 2 dB below rated output, automatically adjusting attack and release times | | Frequency Response | Mixer:
Mic to line output: ±1.5 dB (40 Hz to 25 kHz)
Balanced line input to line output: ±1 dB (20 Hz to 20 kHz)
Unbalanced line input to line output: ±0.5 dB (20 Hz to 20 kHz)
Amplifiers:
Constant voltage: ±3 dB (50 Hz to 20 kHz); 4/8 Ω ±1 dB (50 Hz to 20 kHz) | | Tone Controls | ±10 dB @ 10 kHz, ±9 dB @ 100 Hz (front-panel) with center detent | | Audio Outputs | -10 dBV nominal (316 mV), dual mono unbalanced RCA (main mixer; FLAT or EQUALIZED, switch-selectable on rear panel)
0 dBu nominal balanced, terminal block (Zone 2 mixer) | | MOH Output | 0 dBu nominal (775 mV), 600 Ω transformer-isolated, 16 dB headroom | | Amplifier Output | Zone 1 (main): 35 W RMS (25, 70 or 100 V)
Zone 2: 4 W (8 Ω, on detachable terminal block) | | Indicators | Front-panel: Signal present (4; 1 per input, green), Compressor activity (red), Power (bright=on, dim=standby, blue)
Rear-panel: dual-LED VU meter (for inputs 1 and 2, green/red), Ducking/muting threshold (yellow) | | VCA | Zone 1 (main) master level (with switch-selectable input 1 bypass), 0 to 10 VDC control, RJ45 (compatible with RDL VCA wall controls) | | Controls | Front-Panel Controls:
Zone 1 (main) mixer level controls (4, inputs 1 through 4)
EQ (2, bass and treble)
Power (momentary pushbutton, toggle on/standby)
Rear-Panel Controls:
Gain trimmers (2, input 1 and 2)
Mic/Line switch (2, input 1 and 2)
Zone 1 line output pre/post-EQ switch
Effects loop bypass switch
Sleep (standby) mode delay (4 binary switches)
Input 1 ducking/muting detector sensitivity trimmer
Phantom voltage switches (2, input 1 and 2)
Ducking control switches (3, to duck inputs 2, 3, and/or 4)
VCA paging bypass (includes or excludes input 1 from master VCA control)
Zone 2 mixer level controls (4, inputs 1 through 4) | | Sleep Mode | Power Consumption: < 1 W (amplifier and included power supply)
Delay: 10 minutes to 2 hours (switch-selectable in 10 minute increments)
Disable: Selectable | | Active Mode Delay | 2 seconds (nominal) after input audio detected | | Audio Detector Threshold | -80 dBu mic (at max input gain), -55 dBu balanced line (at max input gain), -42 dBV unbalanced | | Ambient Operating Environment | -32 to 122°F (0 to 50°C) Maximum; 68°F (20°C) Recommended | | Dimensions | 3.5 x 8.5 x 10.0" (8.89 x 21.60 x 25.40 cm) | | Weight | 7.3 lb (3.3 kg) | | | | Package Weight | 9.8 lb | | Box Dimensions (LxWxH) | 18.8 x 9.6 x 4.2" |
