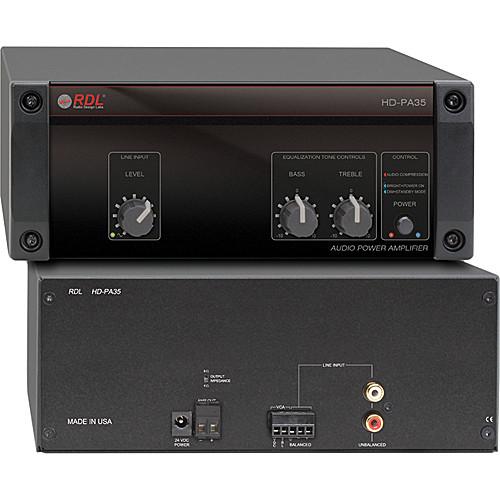

User Manual for RDL HD-PA35 35 Watt Mixer Amplifier with Power Supply Click to enlarge the picture
Contents of the user manual for the RDL HD-PA35 35 Watt Mixer Amplifier
- Product category: Standard Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Standard Amplifiers
|
User manual for the RDL HD-PA35 35 Watt Mixer Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL HD-PA35 35 Watt Remote Mixer Amplifier is a versatile audio amplifier, mixer and paging system targeted for background music, call on-hold music, and commercial audio applications. The single Zone amplifier delivers 35 watts and a single input with balanced stereo summing, and unbalanced RCA connectors. The unit is built to high energy efficiency standards and is more than ideally suited for commercial retail, offices, warehouses, restaurants, bars, and various other environments that require a versatile and efficient audio paging amplifier - One input with front-panel volume control
- Bass and Treble tone controls
- Designed as a single zone amplifier
- Master volume VCA controlled with remote adjustment capability
- Manual or automatic (VOX) priority ducking
- Balanced inputs and amplified outputs on detachable terminal blocks
- Unbalanced inputs and outputs on RCA jacks
- High-efficiency Class D operation
UPC: 813721010780 In the Box RDL HD-PA35 35 Watt Mixer Amplifier with Power Supply Power Supply 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL HD-PA35 35 Watt Mixer Amplifier with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL HD-PA35 Specs | Amplifier | Rated Power: 35W RMS
Power Amplifier Output: 35W RMS (4 Ohms), 32 W (8 Ohms) on detachable terminal block (switch-selectable 4 or 8 Ohm impedance); <1% THD+N | | Audio Inputs | Unbalanced stereo summing input on RCA jacks | | Maximum Input Level | + 9 dBV (+15.5 dBV, one input); (for 1% THD+N at output)
Input level: -15 dBV (180 mV, to cross compressor threshold equaling 23 W amplified output, both input jacks driven) | | Phantom Power | 24VDC (IEC 1938: 1996-12), switch-selectable for the mic input | | Power | 100 to 240 VAC, 50-60 Hz, 50 W; 24 VDC output to amplifier chassis | | Input Level | (to cross compressor threshold equaling 23 W amplified output) Mic Input: -50 dBu (2.5 mV), (front panel gain at max.) Balanced line input: -21 dBu (70 mV), (front panel gain at max.) Unbalanced Inputs: -15 dBV (180 mV, front panel gain at max., both inputs driven) | | Noise | < -75 dB (max gain) | | THD | < 0.5% (1 kHz at compressor threshold, main amp output) | | Compressor | Threshold 2 dB below rated output, automatically adjusting attack and release times | | Frequency Response | Constant voltage: +/- 1 dB (50 Hz to 20 kHz) | | Tone Controls | ±10 dB @ 10 kHz, ±9 dB @ 100 Hz (front-panel) with center detent | | Indicators | FrontFront-panel: Signal present (green), Compressor activity (red), Power (bright=on, dim=standby, blue) | | Controls | Input, EQ (2, bass and treble), Power (latching pushbutton, on/standby) | | Temperature | 32° F to 122° F Maximum; 68° F Recommended (0° C to 50° C Maximum; 20° C Recommended) | | Dimensions (HxWxD) | 3.5 x 8.5 x 6.75" (8.89 x 21.6 x 17.1cm) | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 11.9 x 9.5 x 3.0" |
