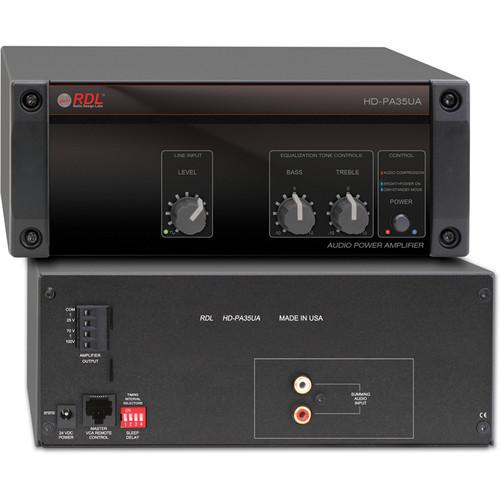

User Manual for RDL HD-PA35UA 35W Single Input Power Amplifier Click to enlarge the picture
Contents of the user manual for the RDL HD-PA35UA 35W Single Input Power
- Product category: Standard Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Standard Amplifiers
|
User manual for the RDL HD-PA35UA 35W Single Input Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The HD-PA35UA 35W Single Input Power Amplifier from RDL provides a constant voltage output of 25V, 70V, or 100V, and is suitable for systems demanding high energy efficiency. It can be used as a single-zone amplifier fed from a variety of RDL or OEM mixers and is also suitable for providing one or more additional zones to a mix originating from another RDL HD series mixer amplifier. The amplifier output is driven from a high-efficiency class-D amplifier stage. The output level can be VCA controlled using various RDL remote controls (available separately) or by industry standard 0 to 10 VDC or 0 to 10kΩ controls that connect to the rear panel RJ45 jack. The amplifier's output drives 4 or 8 ohms speakers. The output impedance is switch-selectable on the rear panel. The amplifier enters standby (sleep) mode when audio is absent and automatically turns on when the presence of a signal at the input is detected. Rear-panel DIP switches are provided to set the power-down delay timer to a value between 10 minutes and 2 hours in 10 minute increments. The switches can be set to disable the sleep mode for systems specifying continuous amplifier operation. The amplifier features an analog compressor/limiter for excellent audio fidelity. The audio is compressed according to three dynamic time constants providing aural transparency while maintaining clean, unclipped amplified audio for input overloads of up to 20 dB. Increasing the input gain (via the front panel) substantially increases the average output power. A red front-panel LED flashes when the compressor is preventing output clipping. Normal audio level signals remain unaffected by the compressor, thereby preserving audio dynamics. During power-up and power-down, the amplifier output is protected against clicks, pops, and thumping by internal soft-start solid-state switches. The power LED on the front panel indicates active and standby modes. The HD-PA35UA Amplifier comes with a 24 VDC power supply, and is equipped with both thermal and short-circuit protection. - One input with front panel volume control
- Front panel bass and treble tone controls
- Designed as a single zone amplifier
- 35W RMS amplifier output via detachable terminal block
- Master VCA control via RJ45 jack
- Unbalanced stereo summing line Input on RCA jacks
- Automatic power-up and standby (sleep mode) power-down
- Automatic sleep mode meets strict energy saving standards
- Programmable sleep mode delay with selectable bypass
- 25V, 70V, or 100V constant voltage outputs
- Includes power supply with North American plug
- Compatible with RDL remote level controls
- Aurally transparent compressor controls clipping
- Compressor maximizes average output power and level
- Audio compression threshold LED
- High-efficiency class D operation
- Thermal and short-circuit protection
UPC: 813721010735 In the Box RDL HD-PA35UA 35W Single Input Power Amplifier 24 VDC Power Supply with North American Plug Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL HD-PA35UA 35W Single Input Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL HD-PA35UA Specs | Rated Power | 35 W RMS | | Audio Input | Unbalanced stereo summing input on RCA jacks | | Maximum Input Level | +5 dBV (+11 dBV, one input); (for 1% THD+N at output) | | Input Level | -15 dBV (180 mV), (to cross compressor threshold equaling 23 W amplified output, both input jacks driven) | | Noise | <-75 dB (maximum gain) | | THD+N | < 0.5% (1 kHz at compressor threshold) | | Compressor | Threshold 2 dB below rated output, automatically adjusting attack and release times | | Frequency Response | ±3 dB (50 Hz to 18 kHz) | | Tone Controls | ±10 dB @ 10 kHz, ±9 dB @ 100 Hz (front panel) with center detent | | Amplifier Power | Output: 35 W RMS (25, 70, or 100 V); <1% THD+N | | Indicators | Front Panel: Signal present (green), compressor activity (red), power (bright=on, dim=standby, blue) | | VCA | Output level, 0 to 10 VDC control, RJ45 (compatible with RDL VCA wall controls) | | Front Panel Controls | Input, EQ (bass and treble), power (momentary push button, toggle on/standby) | | Rear Panel Controls | Sleep (standby) mode delay (4 binary switches) | | Efficiency | Efficiency Standard Used: Energy Star requirements for audio/video version 2.0 | | Sleep Mode Power Consumption | <1 W (amplifier and included power supply) | | Sleep Mode Delay | 10 minutes to 2 hours (switch-selectable in 10 minute increments) | | Sleep Mode Disable | Selectable | | Active Mode Delay | 2 sec (nominal) after input audio detected | | Audio Detector Threshold | -42 dBV | | Power Supply | 100 to 240 VAC, 50 to 60 Hz, 50 W; 24 VDC output to amplifier chassis | | Ambient Operating Temperature | Maximum: 32 to 122°F (0 to 50°C) Recommended: 68°F (20°C) | | Dimensions (H x W x D) | 3.5 x 8.5 x 10.0" (8.9 x 21.6 x 25.4 cm) | | Weight | 7.3 lb (3.3 kg) | | | | Package Weight | 9.33 lb | | Box Dimensions (LxWxH) | 17.75 x 9.125 x 3.938" |
