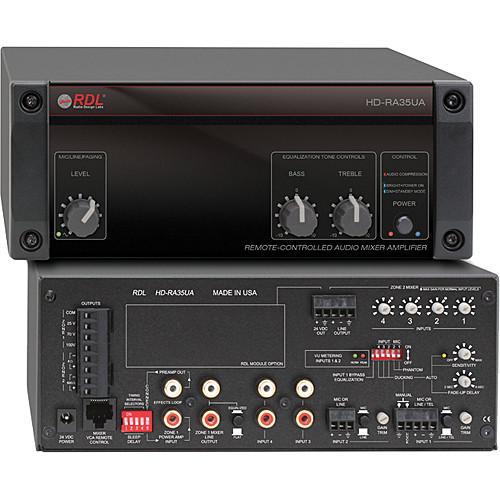

User Manual for RDL HD-RA35U 35 Watt Remote Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the RDL HD-RA35U 35 Watt Remote Mixer
- Product category: Mixer/Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Mixer/Amplifiers
|
User manual for the RDL HD-RA35U 35 Watt Remote Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL HD-RA35U 35 Watt Remote Mixer Amplifier is a versatile audio amplifier, mixer and paging system targeted for background music, call on-hold music, and commercial audio applications. The amplifier features two zones with Zone 1 delivering 35 watts and support for balanced and unbalanced inputs, and audio output to 4 and 8 ohm speakers. Zone 2 is reserved for an 8 ohm speaker or 600 ohm telephone equipment, and capable of 4 watts.Optional VCA remote controls provide remote volume adjustment at various remote locations. The unit is built to high energy efficiency standards with automatic power up when signal is present, and a threshold adjustable "sleep mode" that powers down the amplifier when there is no audio signal. The HD-RA35U prioritizes paging audio with adjustable muting and ducking functions that lower or interrupt background music during pages. The amplifier is more than ideally suited for commercial retail, offices, warehouses, restaurants, bars, and various other environments that require a versatile and efficient audio paging amplifier. - Paging input with front-panel volume control
- Three inputs with VCA volume control adjusted using RDL remote control
- Bass and Treble tone controls
- Designed for background music with paging and music-on-hold
- Manual or automatic (VOX) priority ducking
- Balanced inputs and amplified outputs on detachable terminal blocks
- Unbalanced inputs and outputs on RCA jacks
- Automatic sleep mode meets strictest energy saving standards
Additional Input Features - Input 1 is switch-selectable MIC or LINE. Phantom voltage (IEC standard 24VDC) is switch-selectable for the microphone input. The line input is transformer isolated and accepts balanced or unbalanced, high or low impedance audio sources. A gain trimmer is provided to set the input preamplifier to the optimum gain for the installation.
- A paging source is normally connected to Input 1. This input is equipped with push-to-talk terminals and with an adjustable threshold VOX circuit with LED threshold indicator, either (or both) of which may be set to duck ("fade down" or "mute") inputs 2, 3 and/or 4 by 25 dB when a paging signal is active on Input 1. The attenuated inputs fade up to normal volume when the paging message is finished. A rear-panel trimmer allows the start of the fade-up to be delayed from 2 to 6 seconds.
- Input 2 is switch-selectable MIC or LINE. Phantom voltage (IEC standard 24VDC) is switch-selectable for the microphone input. The line input is active balanced and accepts balanced or unbalanced, high or low impedance sources. A gain trimmer is provided to set the input preamplifier to the optimum gain for the installation.
- An RDL Dual-LED VU meter is provided on the rear panel to indicate proper gain adjustment for Inputs 1 and 2. Correct input gain adjustment insures adequate mixer stage headroom.
- Inputs 3 and 4 each provide unbalanced stereo RCA input jacks, summed to mono.
UPC: 813721010759 In the Box RDL HD-RA35U 35 Watt Remote Mixer Amplifier Power Supply 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL HD-RA35U 35 Watt Remote Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL HD-RA35UA Specs | Amplifier | Zone 1 (Main): 35W RMS, remote-controlled mixer (3 user controls) with paging input level control on front panel
Zone 2: 4W RMS (8 Ohms), rear-panel mixer (trimmers) | | Audio Inputs | 2x balanced, mic or line switch selectable on terminal blocks
2x unbalanced stereo summing inputs on RCA jacks 1x unbalanced amp in on RCA jack
Effects Loop: Unbalanced RCA jacks (preamp output from main mixer, input to power amplifier) | | Gain Control | Inputs 1 and 2: Rear-panel single-turn trimmer | | Maximum Input Level | Mic Inputs: -9 dBu; Balanced line inputs: + 20 dBu; Unbalanced Inputs: + 5 dBV (+11 dBV, one input); (for 1% THD+N at output) | | Phantom Power | 24VDC (IEC 1938: 1996-12), switch-selectable for each mic input | | Attenuation / Gain | Ducking/Muting Actuation: Automatic (Input 1 VOX: rear-panel adjustable signal threshold with LED indicator) or Manual (contact closure to ground)
Ducking/Muting Release Delay: Rear-panel single-turn trimmer, adjustable 2 to 6 seconds Ducking/Muting: Switch-selectable for inputs 2, 3 and/or 4, 25 dB ducking attenuation, nominal | | Power | External RDL Module Power Output: 24VDC, 100 mA maximum, ground-referenced
Power Supply (included): 100 to 240VAC, 50-60 Hz, 50 W; 24VDC output to amplifier chassis
Sleep Mode Power Consumption: < 1 W (amplifier and included power supply) Sleep Mode Delay: 10 minutes to 2 hours (switch-selectable in 10 minute increments)
Sleep Mode Disable: Selectable Active Mode Delay: 2 seconds (nominal) after input audio detected
Audio Detector Threshold: -80 dBu mic (at max input gain), -55 dBu balanced line (at max input gain), -42 dBV unbalanced | | Input Level | Input level (to cross compressor threshold equaling 23W amplified output):
Mic Inputs: -50 dBu (2.5 mV), (front panel and rear trimmer at max.) Balanced line inputs: -21 dBu (70 mV), (front panel and rear trimmer at max.) | | Noise | Unbalanced Inputs: -15 dBV (180 mV), (front panel and rear trimmer at max., both inputs driven)
Mic or Balanced line inputs: -70 dB (below compressor threshold at max gain); Unbalanced Inputs: <-75 dB (max gain) | | THD | < 0.5% (1 kHz at compressor threshold, main amp output); < 0.1% (line output, main) | | CMRR | Mic inputs: > 50 dB (50 Hz to 120 Hz); Balanced line inputs: > 80 dB (50 Hz to 120 Hz, transformer-coupled input) | | Compressor | Threshold 2dB below rated output, automatically adjusting attack and release times | | Frequency Response | Mixer:
Mic to line output: ±1.5 dB (40 Hz to 25 kHz); Balanced line input to line output: ±1 dB (20 Hz to 20 kHz); Unbalanced line input to line output: ± 0.5 dB (20 Hz to 20 kHz) Amplifiers: ±1 dB (50 Hz to 20 kHz) | | Tone Controls | ±10dB @ 10 kHz, ±9 dB @ 100 Hz (front-panel) with center detent | | Audio Outputs | -10 dBV nominal (316 mV), dual mono unbalanced RCA (main mixer; FLAT or EQUALIZED, switch-selectable on rear panel); 0 dBu nominal balanced, terminal block (zone 2 mixer)
MOH Output: 0 dBu nominal (775 mV), 600 Ohm transformer-isolated, 16 dB headroom | | Amplifier Output | Zone 1 (main, <1% THD+N): 35 W RMS (4 Ohms), 32 W (8 Ohms) on detachable terminal block (switch-selectable 4 or 8 Ohm impedance)
Zone 2: 4 W (8 Ohms, on detachable terminal block) | | Indicators | Front-panel: Signal present (4; 1 per input, green), Compressor activity (red), Power (bright=on, dim=standby, blue)
Rear-panel: dual-LED VU meter (for inputs 1 and 2, green/red), Ducking/muting threshold (yellow) | | Power Conversion Efficiency | "Energy Star Program Requirements for Audio/Video" Version 2.0, applicable for passive remote control models (without muting) | | Temperature | 32° F to 122° F Maximum; 68° F Recommended (0° C to 50° C Maximum; 20° C Recommended) | | Dimensions (HxWxD) | 3.5 x 8.5 x 10" (8.89 x 21.6 x 25.4cm) | | Weight | 5.6 lb (2.5kg) | | | | Package Weight | 17.75 lb | | Box Dimensions (LxWxH) | 9.82 x 9.13 x 3.94" |
