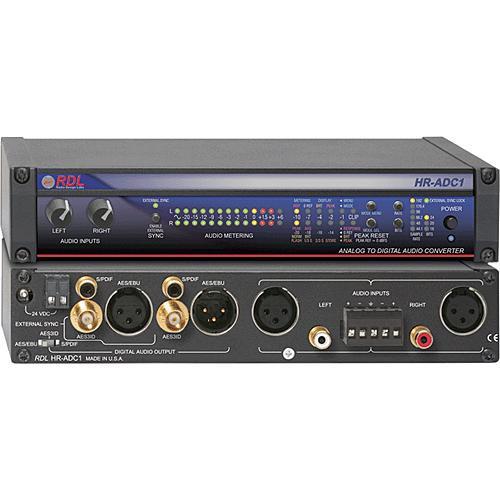

Product description Broadcast studios, video production facilities, and project studios often require high-quality analog to digital audio converters to carry out different tasks. The HR-ADC1 from RDL is a compact A to D converter that was designed specifically for this job. You can connect analog audio sources to the HR-ADC1 and it will convert them into several different formats of digital audio with exceptional accuracy and clarity. The rear panel features pairs of balanced XLR, terminal block, and unbalanced RCA analog inputs. There are digital outputs for AES/EBU on XLR, AES3ID on BNC, and S/PDIF on coaxial RCA. You can sync to an external source using any of these digital connections, or you can set the sampling rate and resolution directly on the HR-ADC1. In a fixed installation where you don't want anyone adjusting the levels, the RDL SC-2 security kit is available separately to lock in the appropriate settings. Capable of handling signals up to 24 bit 192 kHz, the HR-ADC1 provides top-notch quality audio. With its compact, all metal construction, and its user-friendly interface, the HR-DAC1 is a great choice for a wide range of production environments. - Converts analog audio signals into AES/EBU, coaxial S/PDIF, and AES-3ID digital outputs
- Outputs sample rates from 44.1 kHz up to 192 kHz, with 16, 20, or 24 bit resolution
- Features balanced XLR, unbalanced RCA, and balanced terminal block audio inputs
- External sync possible through AES/EBU XLR, AES-3ID BNC, or S/PDIF RCA
- Dedicated external sync lock available LED & external sync lock LED
- Dedicated programmable peak LEDs with reset button
- Left and right input gain adjustment knobs for desired average signal level
- All metal chassis, compact half-rack design
UPC: 813721013347 In the Box RDL HR-ADC1 - Analog to Digital Audio Converter - 24 Bit 192 kHz Rubber Feet 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL HR-ADC1 - Analog to Digital Audio Converter - 24 Bit 192 kHz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL HR-ADC1 Specs | Inputs | 2 x Balanced XLR (30 kilo-ohm)
2 x Unbalanced RCA (30 kilo-ohm)
2 x Balanced Terminal Block | | Outputs | 2 x AES/EBU XLR Transformer Isolated (110 ohm)
2 x S/PDIF Coaxial RCA (75 ohm)
2 x AES-3ID BNC (75 ohm) | | Sample Rate | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz | | Resolution | 16, 20, or 24 bit (selectable on front panel) | | Frequency Response | 10 Hz - 20 kHz (+/- 0.125 dB)
20 Hz - 20 kHz (+/- 0.05 dB) | | THD & Noise | < -105 dBFS (0.0006%, 20 Hz - 20 kHz, internal sample rate) | | Crosstalk | < -115 dB (50 Hz - 60 Hz)
< -105 dB (15 kHz) | | Residual Noise | < -135 dB (10 Hz - 20 kHz) | | Dynamic Range | > 114 dB (resolution 24-bit unweighted) | | Power Requirements | Ground Referenced
24 to 33 VDC @ 300 mA | | Dimensions | 8.6 x 4.3 x 1.7" (20.6 x 10.9 x 4.3cm) | | Weight | Not Specified By Manufacturer | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 10.1 x 7.2 x 2.4" |
