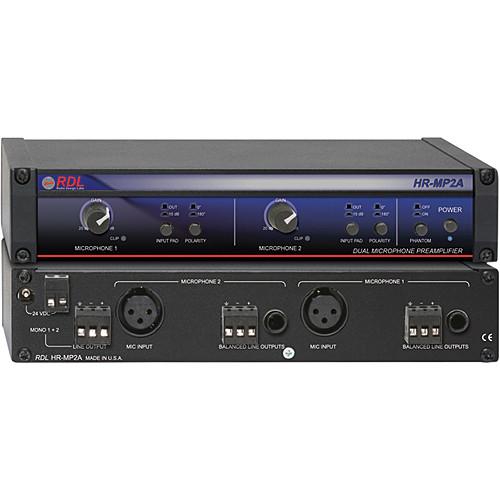

Product description The HR-MP2A from RDL is a dual channel microphone preamplifier housed in a half space rack-mount chassis. The preamp features exceptional input headroom, wide flat frequency response, and extremely low noise with very high common-mode signal rejection. Total harmonic distortion and crosstalk are below the noise floor.
Each section provides identical connections and controls. A 15dB pad and polarity inverse can all be enabled, along with 48V phantom power. A separate LED flashes when a signal peak is within 3dB of clipping. The HR-MP2A can be operated as a stereo preamplifier, or as two separate mono preamplifiers.
Balanced line-level outputs include detachable terminal block and 1/4" TRS phone connectors, which can be wired unbalanced. A separate summing amplifier provides a combined mono output on a line-level detachable terminal block, and a power input jack allows for connecting 24VDC power. - Two independent microphone preamplifiers
- Balanced XLR microphone inputs
- Independent controls for each preamplifier
- Front panel 20dB to 60dB gain control
- Switch selectable 48V phantom power
- Switch selectable 15dB input pad
- Switch selectable polarity reversal
- CLIP indicators for peaks 3dB below clipping
- Balanced line-level outputs
- Each output allows balanced or unbalanced connection
- Each preamp output on 1/4" TRS or detachable terminal block
- Separate summed output 1 + 2 on detachable terminal block
UPC: 813721013385 In the Box RDL HR-MP2A - Microphone Preamplifier 4 x Rubber Feet Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL HR-MP2A - Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL HR-MP2A Specs | Number of Channels | 2 (1 and 2 may be used for stereo, or as two separate mono preamplifiers) | | Inputs | 2 x XLR | | Input Impedance | < 1kΩ balanced | | Input Level | For +4dBu output: -56dBu to 0dBu (maximum gain without pad, minimum gain with pad)
Maximum Level: >+5dBu input pad disabled, +22dBu input pad enabled) | | Gain Range | 20dB to 60dB (front panel adjustable for each preamplifier) | | Pad | Input: 15dB nominal (1 per preamplifier) | | Output | 3 x Detachable terminal block
2 x 1/4" TRS phone | | Output Impedance | 150Ω balanced | | Output Level | +4dBu balanced, -4dBV unbalanced
+24dBu maximum, balanced | | Phantom Power | Switchable 24V or 48V phantom | | Multi Function | No | | Frequency Response | 10Hz to70 kHz, +/-0.5dB, (flat); -3dB @ 80Hz (low-cut filter enabled) | | THD | Below noise floor | | CMRR | >80dB (50Hz to 5kHz) | | Noise | Residual Noise (below +4dBu output): <-85dB (20Hz to 20kHz, 40dB gain, 150Ω source); <-70dB (20Hz to 20kHz, 60dB gain, 150Ω source) | | Crosstalk | Below noise floor | | Indicators | 1 x Blue POWER LED
2 x Red CLIP | | Power Requirement | 24VDC @ 175mA (200mA with phantom), ground-referenced | | Dimensions (WxDxH) | 8.6 x 4.59 x 1.7" (206 x 117 x 43mm) | | Weight | Not specified by manufacturer | | Specialties | Rack-mount using (optional) rack adapters such as HR-RA2, or operate free standing (feet included) | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 10.2 x 7.4 x 2.4" |
