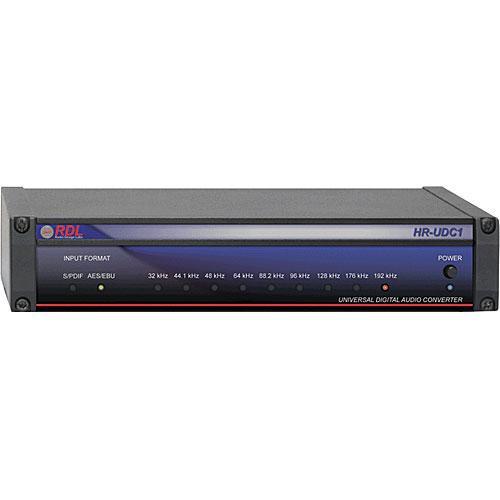

Product description The HR-UDC1 from RDL is a digital audio format converter and an ideal choice in professional installations where signals must be converted between consumer and professional formats. Both the input and output support AES/EBU, coaxial or optical S/PDIF and AES-3ID formats. The HR-UDC1 can be used individually, or combined with other RDL products as part of a complete audio/video system. The unit automatically detects a valid input on any of the four input jacks where the input is decoded, re-clocked and transmitted to the output. All emphasis and sampling frequency bits common to both professional and consumer standards are inserted in the output data stream. The AES/EBU input and output are 110Ω terminated while the S/PDIF coaxial and AES-3ID jacks are 75Ω. Front-panel LEDs display the digital audio format and sample rate. RDL's proprietary Sure-Lok auto-recovery supervision system constantly monitors possible causes of latch-up, and when detected, automatically reinitiates digital signal lock, providing stability to digital audio signal conversion under the variety of professionally encountered conditions. The HR-UDC1 is powered from 24VDC, which may be connected through the detachable terminal block or supplied through an optional external power supply. - Professional solution for data and electrical conversion between S/PDIF and AES/EBU digital audio formats
- Inputs and outputs include AES/EBU, coaxial or optical S/PDIF, and AES-3ID
- Transformer isolated AES/EBU input and output
- Exclusive Sure-Lok auto-recovery sentinel provides digital signal re-clocking
- Operates up to 24-bits/192kHz
- Sample rate indicators and digital signal lock indicator for each input format
UPC: 813721013231 In the Box RDL HR-UDC1 - Universal Digital Audio Converter Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL HR-UDC1 - Universal Digital Audio Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL HR-UDC1 Specs | Digital Input Connectors | 1 x XLR AES/EBU
1 x TosLink optical S/PDIF
1 x RCA coaxial S/PDIF
1 x BNC AES3ID | | Digital Output Connectors | 1 x XLR AES/EBU
1 x TosLink optical S/PDIF
1 x RCA coaxial S/PDIF
1 x BNC AES3ID | | Word Clock | No | | Resolution | 16- and 24-bits | | Sample Rate | 32kHz to 192kHz | | Indicators | 1 x Power LED
2 x Input Format LED
9 x Sample Rate LED | | Power Requirements | 24 to 33VDC @ 50mA, ground-referenced | | Dimensions (WxDxH) | 8.6 x 4.6 x 1.7" (206 x 117 x 43mm) | | Specialties | Half-rack metal enclosure | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 10.315 x 7.323 x 2.284" |
