User Manual for RDL PT-ASG1 - Portable Precision Analog Audio Generator Click to enlarge the picture
Contents of the user manual for the RDL PT-ASG1 - Portable Precision Analog
- Product category: Cable Testers & Tone Generators RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Cable Testers & Tone Generators
|
User manual for the RDL PT-ASG1 - Portable Precision Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

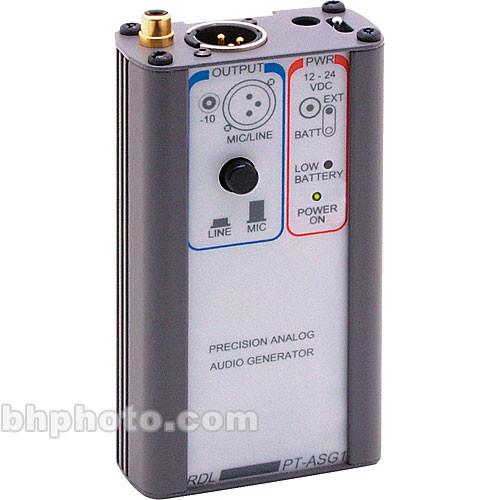

Product description The PT-ASG1 from RDL, is a precision analog-audio generator that features a precision audio oscillator, operating at 700MHz. The portable unit is a good choice for applications requiring a stable audio signal source for audio system alignment and testing. The unit's output is constantly compared against an internal, temperature-stable reference, providing the stable output required for accurate bench-top audio testing. The PT-AMG1 features two outputs, one balanced (selectable between microphone and line level,) the other unbalanced. The balanced outputs are able to maintain consistent level, regardless of impedance. The unit operates either from two internal 9V batteries, or from an external power supply. Neither is included. When operated from the batteries, a "Low Battery" LED glows steadily when less than one hour operating time remains. - Selectable microphone/line level output
- Provides precise and stable audio reference
- Operates from 9V batteries or via a 24Vdc external power supply (not included
- Reference level can be set for +4dBu or +6dBu
- Suitable for both portable or bench operation
UPC: 813721013514 In the Box RDL PT-ASG1 - Portable Precision Analog Audio Generator Test Leads Bench-Top Stand Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL PT-ASG1 - Portable Precision Analog Audio Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL PT-ASG1 Specs | Frequency Range | Oscillator Frequency: 700Hz, nominal | | Input Connections | Not applicable | | Output Connections | 1 x XLR
1 x RCA phono | | Input Impedance | Not applicable | | Output Impedance | Not applicable | | Output Level | Balanced Line: +4dB (+6dBu switch selectable, 2.5kΩ load)
Balanced Mic: -46dBu (2.5kΩ load, 50dB below +4dBu)
Unbalanced Line: -10dBV | | THD & Noise | Not applicable | | Power and Battery | 2 x 9V Batteries (not included)
12 to 30Vdc @ 45mA External Power Supply (not included) | | Dimensions (WxDxH) | 2.8 x 1.39 x 5.2" (71 x 25 x 133mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 6.6 x 6.4 x 4.5" |
