User Manual for RDL RC4-RU - 4-Channel Remote Control Click to enlarge the picture
Contents of the user manual for the RDL RC4-RU - 4-Channel Remote Control
- Product category: Switchers & Controllers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Switchers & Controllers
|
User manual for the RDL RC4-RU - 4-Channel Remote Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

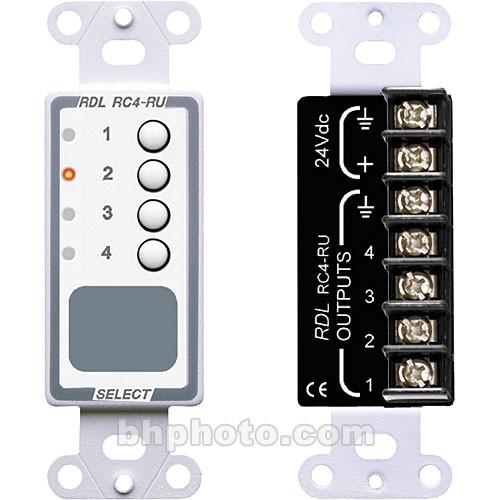

Product description The RC4-RU from RDL is a wall-box mounted, four-channel remote control module designed to control an RDL RU-SX4A audio switcher module, which provides solid state switching of one of four balanced/unbalanced audio inputs to a single balanced/unbalanced audio output. The RC4-RU connects to the switcher via a 3-pair cable or a 6-conductor cable. The remote features four push-buttons and corresponding LEDs for a wonderfully simple, straightforward interface.
The RC4-RU has four open-collector outputs, each of which becomes grounded when it is selected. In stereo applications, the RC4-RU is capable of driving two RU-SX4A units simultaneously. - Offers direct control of an RDL RU-SX4A audio switcher module
- Solid, professional construction and appearance
- Simple push-button interface with LED indicators
In the Box RDL RC4-RU - 4-Channel Remote Control 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RC4-RU - 4-Channel Remote Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RC4-RU Specs | Controls | 4 x Push-buttons (1 for Each Channel) | | Indicators | 4 x Red LEDs (1 for Each Channel) | | Connectors | Interfaces Directly with RU-SX4A Do not use with RU-SX4. | | Power Requirements | 24 - 33 VDC @ 30 mA | | Dimensions (HxWxD) | 4 x 1.3 x 1.6" (102 x 33 x 41 mm) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
