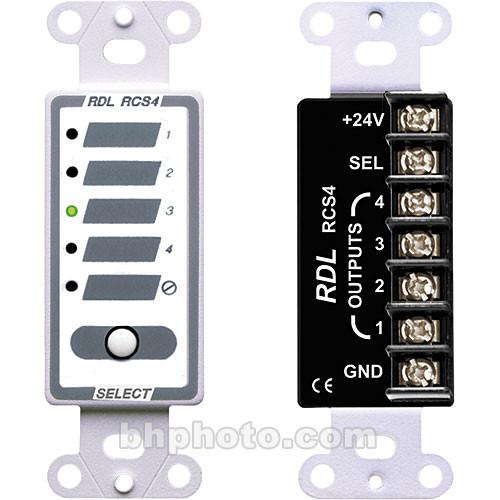

Product description The RCS4 from RDL is a remote channel selector designed to interface with RDL control modules such as the RU-SX4A audio selector. The momentary push-button of the RCS4 sends a stepping signal back to the control module, causing it to advance sequentially to the next input. The audio is muted during stepping to prevent small audio "bursts". The RCS4 has a durable steel construction making it suitable for any professional audio application. - Compatible with multiple RDL control modules
- LEDs indicate selected channel
- Multiple units may be connected to a single control module
- Durable steel construction and professional appearance
- Full-size rear-panel barrier block connector
In the Box RDL RCS4 - Remote Channel Selector (4 Channel) 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RCS4 - Remote Channel Selector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RCS4 Specs | Inputs | 4 x Screw Terminals for Direct Connection to RDL Selector Module
1 x +24V Screw Terminal
1 x Ground Screw Terminal | | Output | 1 x Select Screw Terminal, Push-Button Actuated (15 VDC @ 5 mA) | | Indicators | 4 x Green LEDs
1 x Red LED | | Power Requirements | 24 - 33 VDC @ 25 mA (Ground-Referenced) | | Dimensions (WxDxH) | 1.3 x 1.6 x 4.1" (33 x 41 x 104 mm) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
