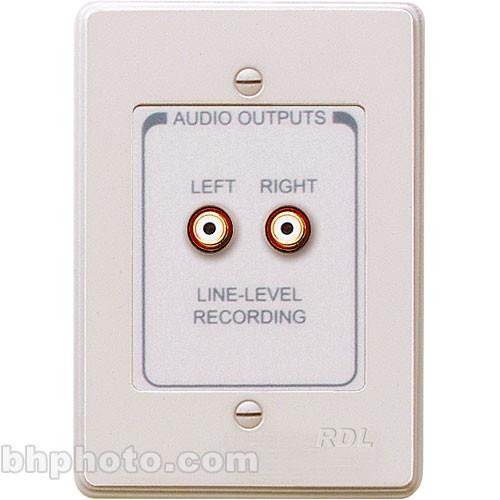

Product description The RDL RCX-A2N Wall Plate is designed to send a -10dBv (unbalanced) stereo audio signal to recorders and other audio input sources. The wall plate is used as an access panel to record the audio in that particular room or zone. The RCX-A2N is easily mounted onto standard electrical outlet boxes and audio is fed via the RCX-5C or RCX-5M audio zone controllers. - Wall Mounted Consumer Level Outputs
- The unbalanced outputs enable access to zone audio for recording, monitoring, etc.
- Single or Dual Outputs from Mono Source
- Dual outputs enables mono audio to be sent to stereo recording devices.
- Gold Plated Phono Jack Outputs
- Gold plated phono jacks provide enhanced conductivity.
- Mounts Into Standard Outlet Boxes
- The RCX-A2N mounts into standard wall-mounted electrical boxes.
In the Box RDL RCX-A2N Wall Plate with Dual Phono Audio Outputs for the RCX-5C Audio Controller (Neutral Color Finish) 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RCX-A2N Wall Plate with Dual Phono Audio Outputs for the RCX-5C Audio Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RCX-A2N Specs | Input Level | +4 dBu, nominal | | Input Connector | Full Size Barrier Block | | Input Impedance | 10k ohms Balanced Bridging, Monaural | | Output Connectors | Phono Jacks with Gold Contacts | | Input Connections | Case Ground, Shield, + / - | | Frequency Response | 50Hz to 20kHz (+/- 1 dB) | | Power | Passive | | Dimensions (HxWxD) | 4.88 x 3.39 x 1.29" (12.40 x 8.61 x 3.28cm) | | | | Package Weight | 0.835 lb | | Box Dimensions (LxWxH) | 7.0 x 4.375 x 2.25" |
