User Manual for RDL RCX-J1 Microphone Input Panel Assembly Click to enlarge the picture
Contents of the user manual for the RDL RCX-J1 Microphone Input Panel Assembly
- Product category: Modules & Cards RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Modules & Cards
|
User manual for the RDL RCX-J1 Microphone Input Panel Assembly contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

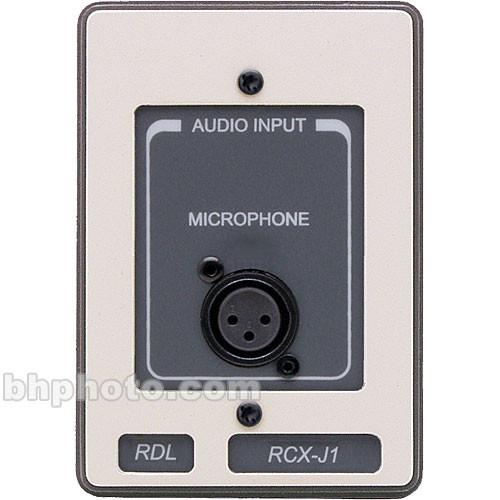

Product description The RCX-J1 Microphone Input Panel Assembly (White & Gray) from RDL is an audio input accessory that belongs to the ULTRASTYLE family of products. This series is designed to combine the highest-quality construction and aesthetics in one product. This unit features an all-metal enclosure with two coordinated neutral colors that will complement the decor of any working environment.
This model is a complete microphone input panel assembly with (1) XLR jack and a full-size barrier block. Connections to the XLR jack on the front panel can be made via the rear barrier block. Four terminals are provided. A jumper between the pin-1 connection and the case ground may be made if desired. All jacks and connections are labeled to facilitate installation.
This unit can be mounted in cabinets or most standard U.S. single-gang electrical boxes. It is also compatible with the WB-1U Universal Wall Box from RDL. - Microphone Input Panel Assembly
- The panel features an XLR jack on the front panel that allows connections via a rear barrier block.
- ULTRASTYLE Product
- This unit belongs to the ULTRASTYLE family of products from RDL, a series dedicated to combining the highest level of aesthetics and function.
- Compatibility
- This panel will work in cabinets or most standard U.S. single-gang electrical boxes and is also compatible with the WB-1U Universal Wall Box from RDL.
In the Box RDL RCX-J1 Microphone Input Panel Assembly (White & Gray) Input Panel Three-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RCX-J1 Microphone Input Panel Assembly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RCX-J1 Specs | Construction | Metal, plastic | | Finish | White outer trim
Gray center connector section & highlight lines | | Input Connections | (1) female XLR jack with gold contacts | | Output Connections | (1) Full-size barrier block with (4) connections:
CASE GROUND
SHIELD (XLR pin 1)
+(XLR pin 2)
-(XLR pin 3) | | Power | Passive | | Dimensions (HxWxD) | 4.88 x 3.39 x 1.29" (12.40 x 8.61 x 3.28cm)
2.73 x 1.8 x 1.5" (6.93 x 4.57 x 3.81cm) back-box mounting requirements | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.2 x 5.1 x 2.5" |
