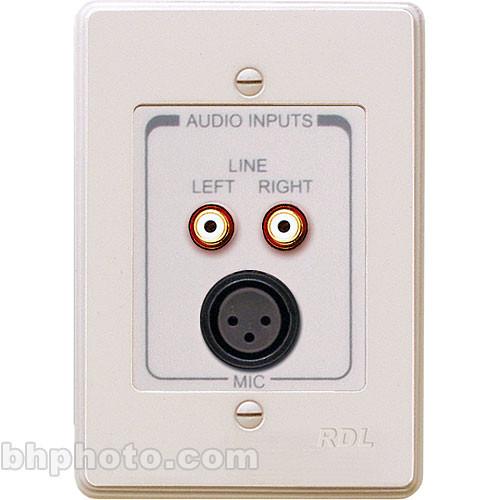

Product description The RCX-J3N Complete Audio Input Panel Assembly (White with Gray) from RDL is an audio input accessory that belongs to the ULTRASTYLE family of products. This series is designed to combine the highest-quality construction and aesthetics in one product. This unit features an all-metal enclosure with two coordinated neutral colors that will complement the decor of any working environment.
This model is a complete audio input panel assembly. The front panel features (1) female XLR jack and (2) phono jacks. The XLR jack is connected directly to the rear-panel barrier block. The phono jacks are intended for mono or stereo consumer-level sources. Left and right inputs are combined and balanced through audio transformers that have been configured to reduce injected hum. The back of the unit features a barrier block that manages line-level output. It can be used to make connections to 10kΩ or higher line-level modules or equipment inputs. All jacks and connections are labeled to facilitate installation.
This unit can be mounted in cabinets or most standard U.S. single-gang electrical boxes. It is also compatible with the WB-1U Universal Wall Box from RDL. - Complete Audio Input Panel Assembly
- The panel features (1) XLR jack and (2) phono jacks on the front panel and a full-size barrier block on the rear panel.
- ULTRASTYLE Product
- This unit belongs to the ULTRASTYLE family of products from RDL, a series dedicated to combining the highest level of aesthetics and function.
- Compatibility
- This panel will work in cabinets or most standard U.S. single-gang electrical boxes and is also compatible with the WB-1U Universal Wall Box from RDL.
UPC: 813721016522 In the Box RDL RCX-J3N Complete Audio Input Panel Assembly (White with Gray) Input Panel Three-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RCX-J3N Complete Audio Input Panel Assembly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RCX-J3N Specs | Construction | Metal, plastic | | Finish | White outer trim
White center connector section
Gray highlight lines | | Input Connections | (1) XLR female jack with gold contacts
(2) phono jacks with gold contacts | | Output Connections | (1) Full-size barrier block with (5) connections:
+ - SHIELD (XLR Pin 1)
+ (XLR Pin 2)
- (XLR Pin 3) | | Frequency Response | 30Hz to 20kHz (±1 dB) line level | | Power | Passive | | Dimensions (HxWxD) | 4.88 x 3.39 x 1.29" (12.40 x 8.61 x 3.28cm)
2.73 x 1.8 x 1.5" (6.93 x 4.57 x 3.81cm) back-box mounting requirements | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.3 x 5.1 x 2.5" |
