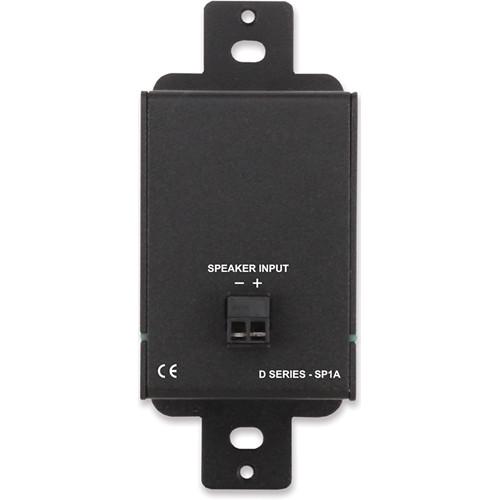

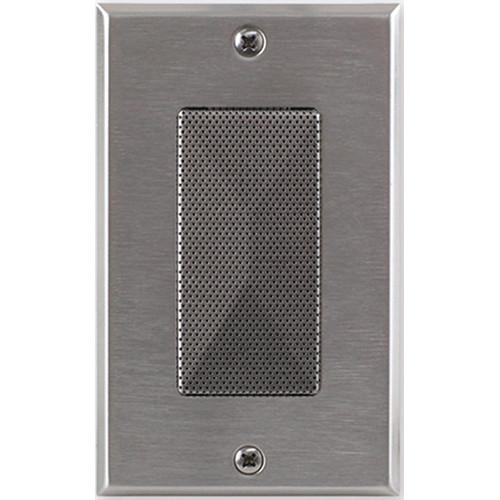

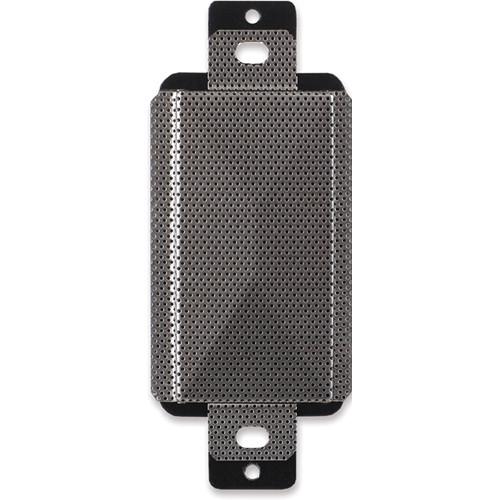

Product description The stainless steel RDDSSP1A 2W Decora-Style 8 Ohm Loudspeaker from RDL is a compact loudspeaker that can be mounted in a Decora-compatible wall/chassis mount, US electrical box, or surface mount box. The speaker's neodymium driver features a convex aluminum cone with rubber surround. This helps produce excellent audio quality with hemispheric dispersion. The dispersion covers a spherical area of nearly 180° with the speaker mounted into a wall. The speaker's steel enclosure provides full baffling in a tightly sealed rigid structure. Thanks to the internal filtering, the out-of-band frequencies are rolled off to reduce distortion and increase peak power capability. The input is connected through a 2-position detachable terminal block on the rear panel. This speaker operates with a continuous audio input up to 2W, making it suitable for speech or music driven by amplifiers with a maximum rated power of 10W. General - Acoustically optimized Decora enclosure
- Mounts into a wall or flat surface
- Convex aluminum cone with rubber surround produces excellent audio quality with hemispheric dispersion (nearly 180° with the speaker mounted into a wall)
- Neodymium driver delivers audio clarity and frequency response comparable to larger drivers
- Steel construction and power coat finish provides enhanced durability
Applications - Houses of worship, cry rooms, narthex, and corridors
- Museum information stations
- Anywhere a high quality, compact, wall, or surface mounted speaker is required
UPC: 813721018656 In the Box RDL RDDSSP1A 2W Decora-Style 8 Ohm Loudspeaker (Stainless steel) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RDDSSP1A 2W Decora-Style 8 Ohm Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-SP1A Specs | Input Power | 2 W RMS (modulation peaks limited to 10 W) | | Input Connections | Detachable terminal block (14 to 24 AWG) | | Impedance | 8 ohms nominal | | Frequency Range | 150 Hz to 20 kHz nominal | | Sensitivity | 78 dB (1 W, 1 m nominal) | | Dispersion | Hemispheric 180° when mounted into a wall | | Material | Enclosure: Powder coated steel
Grille: Formed perforated steel | | Mounting | Mounts in US electrical boxes, RDL international wall boxes (WB), surface mount boxes (SMB), or desktop chassis' DC (available separately)
Mounting Box Depth: 2.0" (5.1 cm) minimum | | Package Type | Cardboard box | | Dimensions (H x W x D) | 4.10 x 1.72 x 2.07" (10.40 x 4.37 x 5.26 cm) (with terminal block) | | Weight | 0.4 lb (0.2 kg) | | | | Box Dimensions (LxWxH) | 4.63 x 2.13 x 0.53" |
