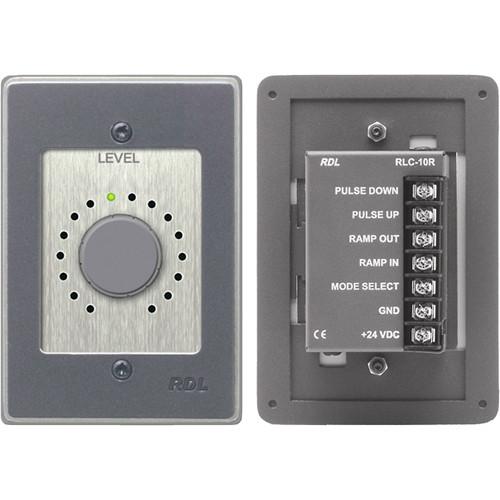

User Manual for RDL RLC-10RS Rotary Level Control Click to enlarge the picture
Contents of the user manual for the RDL RLC-10RS Rotary Level Control
- Product category: Switchers & Controllers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Switchers & Controllers
|
User manual for the RDL RLC-10RS Rotary Level Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RLC-10RS Rotary Level Control from RDL is suitable for 0 to 10 VDC or pulsed control operations from a remote location. The encoder's circuitry is based on optical encoder technology for long-term, trouble-free operation. Two output modes are simultaneously available. The 0 to 10 VDC output operates continuously and is used for single point control. This output is used to control RDL VCA products, and may be connected to a wide range of other industry 0 to 10 VDC controlled equipment. If multiple control points are desired, the pulse outputs may be connected to RDL RU-VCA products and various other industry products. Up and down pulses from the optical encoder are also provided on the rear barrier block. A rear-panel jumper sets the pulse outputs to either produce +15 VDC pulses or momentary open collector pulses. Control is incremented up or down when the large front-panel knob is rotated and acceleration is provided so the rate of change is faster when the knob is rotated more rapidly, yielding a responsive feel. The LED ring display encircling the control knob operates as a virtual pointer. The input to this display is a 0 to 10 VDC signal. A strap on the module rear barrier block determines if the display operates from the internally generated control voltage or from an external control voltage. Typically, if the 0 to 10 VDC control voltage from the RLC-10R is being used to control a VCA, the internal voltage is also used for the display. If the RLC-10R pulse outputs are used with RDL RU-VCA modules, the 0 to 10 VDC EQRAMP from the VCA module is fed back to the RLC-10R. Therefore, multiple RLC-10R modules may be connected together with all modules providing the same level indication. In the event of power loss, internal non-volatile memory stores the last level value. When power returns, the 0 to 10V output will return to the operating level present when power was lost. The encoder can be used individually, or combined with other RDL products as part of a complete audio/video system. -
- Direct 0 to 10 VDC output from a remote control
- Up/down pulse output from a remote control
- 0 to 10 VDC LED display of internal/external voltage
- Optical encoding for long life
- Noise-free performance
- RDL ULTRASTYLE design
In the Box RDL RLC-10RS Rotary Level Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RLC-10RS Rotary Level Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RLC-10RS Specs | Ramp Output | 0 to 10 VDC | | Output | Pulse: Pulse up, pulse down (programmable open-collector or 15 V pulse) | | Current | Pulse: 20 mA (open collector) | | Resistance | Display RAMP IN Input Resistance: 200 kOhms | | Input Voltage | 0 to 10 VDC | | Rotation | 5 (slow rotation, no acceleration); 3 (medium rotation, with acceleration); 1 (fast rotation counterclockwise, anti-feedback mode), approximate min-to-max | | Mounting | Backbox Mounting Requirement: (H x W x D): 2.73 x 1.80 x 1.50" (6.93 x 4.57 x 3.81 cm) | | Power Requirement | Ground-referenced, 24 VDC @ 50 mA Power supply not included | | Approvals | CE, EN55103-1 E1-E5; EN55103-2 E1-E4 | | Dimensions (H x W x D) | 4.9 x 3.4 x 1.6" (12.4 x 8.6 x 4.1 cm) | | Weight | 0.8 lb (0.4 kg) | | | | Package Weight | 0.905 lb | | Box Dimensions (LxWxH) | 7.0 x 4.375 x 2.25" |
