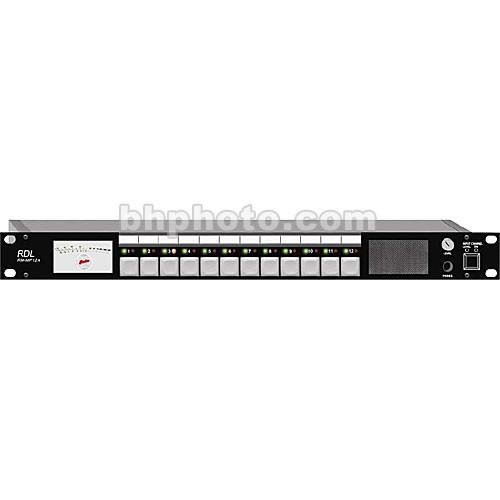

User Manual for RDL RM-MP12A - 12-Channel Audio Monitor Panel Click to enlarge the picture
Contents of the user manual for the RDL RM-MP12A - 12-Channel Audio Monitor
- Product category: Switchers & Controllers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Switchers & Controllers
|
User manual for the RDL RM-MP12A - 12-Channel Audio Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL RM-MP12A is a rack-mountable 12-channel audio monitor panel. Each of the 12 inputs can be individually calibrated for unbalanced, balanced, 8 ohm speaker, or constant voltage speaker lines. Each input has its own pushbutton, which selects that input for monitoring via the calibrated meter, internal speaker, headphone output, and/or an optional external speaker. A mix mode is also available, allowing you to mix multiple sources.
Variable intensity LEDs on each channel show audio presence and level. Room is provided on each input for labelling. A single front-panel knob is provided for adjusting the volume level of the headphone jack, internal speaker, external speaker output, and the variable line level output. With its simple, uncluttered interface, the RM-MP12A is a great choice for monitoring or mixing multiple audio sources. - 12 individually-selectable inputs
- Choose from interlocking source selection or mixing mode
- LEDs on each channel for audio signal presence and level
- Front-panel speaker and headphone jack for monitoring (Option for connecting an external speaker as well)
- Calibrated front-panel meter display
- Output level control knob
- Internal 4.5W power amplifier
- Plug-in terminal blocks for all I/Os
UPC: 813721016317 In the Box RDL RM-MP12A - 12-Channel Audio Monitor Panel 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RM-MP12A - 12-Channel Audio Monitor Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RM-MP12A Specs | Inputs | 6 x 5-Pin Terminal Block Connectors (2 Channels on Each Connector, +4 dBu, 25V, 70.7V, 100V Selectable) | | Input Level | -11 dBu to +9 dBu (+4 dBu Input)
25V, 70.7V, 100V (Gain Trim @ Full Counter-Clockwise) | | Headroom | Greater than 18dB Above Calibrated Input Level | | Gain | 0dB to 20dB (Adjustable for Speaker-Level Input)
-5dB to 15dB (+4 dBu Input) | | Frequency Response | 10Hz to 20kHz (+/-0.25dB) | | THD + N | Less than 0.01% | | Intermodulation Distortion | Less than 0.025% | | Crosstalk | Less than -80dB (10Hz to 20kHz) | | Residual Noise | Less than -80dB (Channel ON; Referred to +4 dBu) | | Common Mode Rejection Ratio | Greater than 75 dB (50 to 120Hz) | | Outputs | 150 ohms, +4 dBu Fixed Level (Balanced or Unbalanced via Plug-In Terminal Block)
150 ohms, +4 dBu Variable Level (Balanced, Controlled by Front-Panel Knob)
4.5W RMS External Speaker Connection (Use of External Speaker Disconnects Internal Speaker)
1/4" (6.3mm) Stereo Headphone Jack | | Indicators | 2 x LEDs per Channel (1 for Channel Active and 1 for Audio Level) | | Power Requirements | 24 to 33 VDC @ 700mA (Ground-Referenced) | | Dimensions (HxWxD) | 1.75 x 19 x 5.4" (44 x 483 x 137 mm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 4.75 lb | | Box Dimensions (LxWxH) | 21.0 x 6.9 x 2.4" |
