User Manual for RDL RU-AVX4 - 4-Channel A V Switcher Click to enlarge the picture
Contents of the user manual for the RDL RU-AVX4 - 4-Channel A V
- Product category: Switchers & Controllers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Switchers & Controllers
|
User manual for the RDL RU-AVX4 - 4-Channel A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

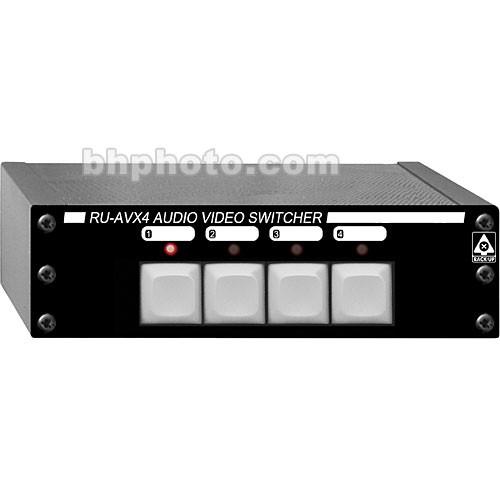

Product description The RU-AVX4 from RDL is a compact, rack-mountable, professional-quality 4-channel audio/video switcher. It offers gold-plated RCA phono connectors for all inputs and outputs, allowing a variety of devices such as VCRs, DVD players, or CD players to be connected. All source selection uses solid-state switching for increased reliability.
Each source has a front-panel pushbutton selector and an accompanying LED to signal which source is currently selected. A terminal block connector is provided on the rear-panel for remote control of the unit. - Switch between 4 audio/video sources
- Gold-plated RCA phono jacks for all I/Os
- Front-panel pushbuttons for source selection
- LED indicators for each channel
- Rear-panel terminal block connector for remote control
- Professional quality in a compact unit
UPC: 813721013118 In the Box RDL RU-AVX4 - 4-Channel A/V Switcher 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU-AVX4 - 4-Channel A V Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU-AVX4 Specs | | | Inputs | 4 x Gold-Plated RCA Phono Jacks, 75 ohms | | Input Level | 1V p-p | | Outputs | 1 x Gold-Plated RCA Phono Jack, 75 ohms | | Frequency Response | 10Hz - 10MHz | | Residual Noise | Less than -70dB | | Off Attenuation | Greater than 78dB | | Differential Gain | 0.1% | | Differential Phase | Less than 0.3 degrees | | | | Inputs | 4 x Stereo Pairs of Unbalanced RCA Phono Jacks, 10 k ohms | | Gain | Unity Nominal | | Input Level | -10 dBV Nominal | | Outputs | 1 x Stereo Pair of Unbalanced RCA Phono Jacks, 75 ohms | | Frequency Response | 10Hz - 60kHz | | Total Harmonic Distortion (THD) | Less than 0.01% | | Headroom | Greater than 20dB | | Noise | -95dB, -10 dBV Ref. (20Hz - 20kHz) | | Off Attenuation | Greater than 74dB | | Crosstalk | Below Noise Floor (Inputs Terminated) | | | | Power Requirements | 24 to 33 VDC @ 100mA (Ground-Referenced) (Inputs via screw terminals or AC adapter jack) | | Remote Control Connector | 1 x Screw Terminal Block | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 2.5" |
