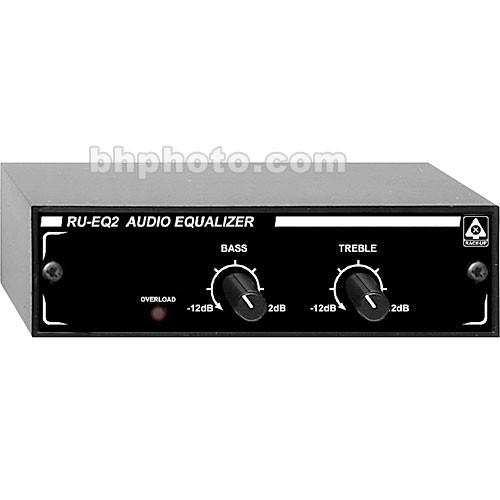

User Manual for RDL RU-EQ2 - 2-Band Audio Equalizer Click to enlarge the picture
Contents of the user manual for the RDL RU-EQ2 - 2-Band Audio Equalizer
- Product category: Equalizers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Equalizers
|
User manual for the RDL RU-EQ2 - 2-Band Audio Equalizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RU-EQ2 from RDL is a single channel, two band shelving EQ and features a balanced bridging input, which may be connected unbalanced if desired. The output driver is 150 Ω balanced, and is intended to drive unbalanced or balanced lines of 150 Ω or higher impedance. The two front-panel knobs provide active equalization, each controlling a separate audio band. The bands were carefully selected to yield a module that works effectively in a wide variety of systems, with each band's center frequency being either boosted or attenuated by up to 12dB. The bandwidths of the bands were selected so that those controls can be functionally considered as bass and treble controls. A feature unique to the RU-EQ series is the OVERLOAD indicating LED. When audio signals are equalized, the boosted level can cause the output circuit to clip. The OVERLOAD indicator flashes if either the input or output stage clips. - Single channel two-band audio equalizer
- Low and high band, low-noise, low-distortion shelving EQ
- Custom tailored audio bandwidth
- User-accessible adjustments
- High-density rack-mount convenience
In the Box RDL RU-EQ2 - 2-Band Audio Equalizer Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU-EQ2 - 2-Band Audio Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU-EQ2 Specs | Filter Type | Shelving | | Number of Channels | Single | | Inputs | 100 kΩ balanced or unbalanced bridging, line-level | | Outputs | 100 kΩ balanced or unbalanced bridging, line-level | | Maximum Input Level | Not specified by manufacturer | | Frequency Bands | Low Band: 80Hz center
High Band: 30kHz center | | Bandwidth | Low Band: 20Hz to 300Hz
High Band: 3kHz to 30kHz | | Range (Boost/Cut) | +/-12dB | | Maximum Output Level | Not specified by manufacturer | | Frequency Response | 20Hz to 22kHz, +/-0.5dB into 600 Ω (EQ set flat) | | Dynamic Range | Not specified by manufacturer | | Noise | <-80dB below +4dBu | | Dimensions (WxDxH) | 5 5/8" x 2 1/2" x 1 3/4" | | Weight | Not specified by manufacturer | | Specialties | Requires ground-referenced, 24 to 33Vdc @ 150mA power source | | | | Package Weight | 0.725 lb | | Box Dimensions (LxWxH) | 7.0 x 4.375 x 2.25" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
