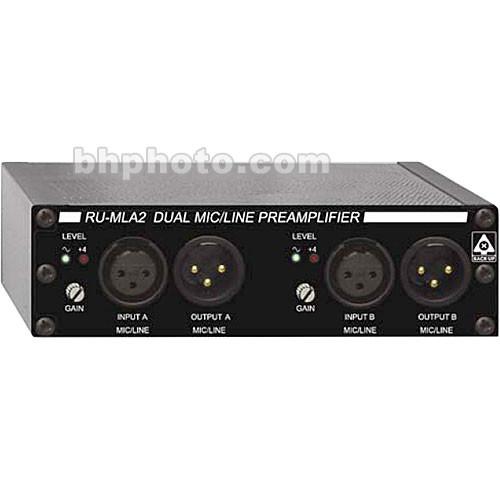

User Manual for RDL RU-MLA2 - Dual Channel Microphone Line Preamplifier with Four Channel Audio Distribution Click to enlarge the picture
Contents of the user manual for the RDL RU-MLA2 - Dual Channel Microphone
- Product category: Microphone Preamps RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Microphone Preamps
|
User manual for the RDL RU-MLA2 - Dual Channel Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RU-MLA2 from RDL is a two channel microphone/line preamp and a four channel audio distribution amplifier. The input and all four outputs may be connected either through the front-panel XLR jacks, or on the rear panel detachable terminal blocks, with both the front-panel XLR connectors, and the rear-panel terminals, active at all times. The unit will accept either a balanced microphone or line level signal, while each of the four outputs provide either a microphone or line level signal. The audio input is equipped with a rear-panel switch to select between microphone and line level with two additional switches allowing for setting the microphone input for low or high gain and for switching the 24VDC phantom power. Gain trim is provided on a knurled front-panel control with a screwdriver slot, that allows for setting the gain by hand or with a screwdriver. Each output is provided with a separate rear-panel switch to set its level to either microphone or line and each output is isolated from the other and may be wired balanced or unbalanced. - Two-channel audio preamplifier with switch-selectable microphone or line inputs
- Front panel XLR input and output jacks
- Detachable rear panel input and output terminal blocks
- All four outputs available simultaneously
- Switch-selectable microphone gain and +24V phantom power
- Each output is switch-selectable as microphone or line level
UPC: 813721013149 In the Box RDL RU-MLA2 - Dual Channel Microphone/Line Preamplifier with Four Channel Audio Distribution Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU-MLA2 - Dual Channel Microphone Line Preamplifier with Four Channel Audio Distribution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU-MLA2 Specs | Number of Channels | 2 | | Inputs | 2 x XLR
Rear panel detachable terminal block | | Output | 2 x XLR
Rear panel detachable terminal block | | Phantom Power | +24V | | Multi Function | Four channel audio distribution | | Gain Range | Mic:
Off to 52dB (low gain)
Off to 69dB (high gain)Line:
Off to 20dB | | Maximum Output Level | +22dBu | | Frequency Response | Mic:
80Hz to 50kHz, +/-0.75dBLine:
15Hz to 50kHz, +/-0.1dB | | Noise | Mic:
-79dB (50dB gain); -70dB (60dB gain)Line:
-85dB | | Dimensions (WxDxH) | 5 13/16" x 3 1/2" x 1 3/4" (147 x 89 x 45 mm) | | Weight | 2 lbs (0.9 kg) - shipping | | Specialties | Requires ground referenced 24 to 33VDC @ 80mA power supplyThe unit can be rack-mounted with the XLR jacks facing forward, or reverse-mounted using the optional RU-FP1 filler panel/reverse mount kit | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 7.0 x 6.0 x 2.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
