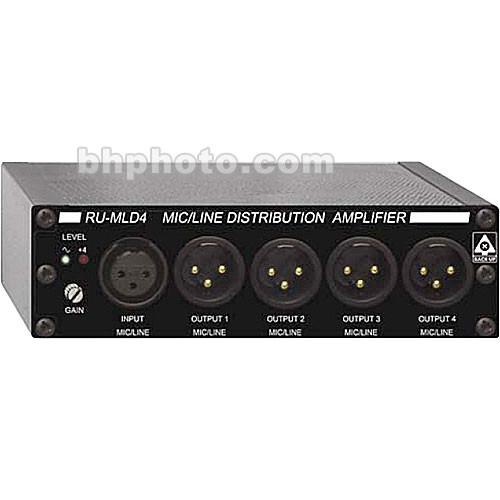

Product description The RU-MLD4T from RDL is a professional-quality 1-in, 4-out audio distribution amplifier. It can accept or send mic or line level signals, and the input connection can be made via the front-panel XLR connector or the rear-panel terminal block connectors. Outputs are connected via front-panel XLR or rear-panel terminal block connectors as well.
Switchable 24V phantom power is available and two mic gain settings allow you to use a wide variety of dynamic or condenser microphones with the RU-MLD4T. Each transformer-isolated output can be wired as balanced or unbalanced and can be individually set to send out a mic or line level signal. A gain control is provided on the front panel, along with signal level LED indicators. - All I/Os can be connected via front-panel XLR or rear-panel terminal block
- The input and each transformer-isolated output can be selected for a mic or line level signal
- 24VDC phantom power available
- Accepts a variety of dynamic and condenser microphones thanks to two gain settings
UPC: 813721013170 In the Box RDL RU-MLD4T - 1x4 Mic/Line Distribution Amplifier with Transformer-Isolated Outputs 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU-MLD4T - 1x4 Mic Line Distribution Amplifier with Transformer-Isolated Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU-MLD4T Specs | Inputs | 1 x Front-Panel XLR Connector
1 x Rear-Panel Removable Terminal Block | | Input Level | Mic/Line Switch-Selectable via Rear Panel | | Input Impedance | Mic: 2 k ohms Balanced, Switchable 24V Phantom Power
Line: 10 k ohms, Balanced (May be Connected Unbalanced) | | Outputs | 4 x Front-Panel XLR Connectors
2 x Rear-Panel Removable Terminal Blocks (2 Channels on Each Block) | | Output Level | Mic/Line Switch-Selectable via Rear Panel | | Output Impedance | 150 ohms Balanced | | Gain | Mic: Off to 52dB (Lo), Off to 69dB (Hi)
Line: Off to 15dB | | Frequency Response | Mic: 80Hz - 50kHz
Line: 15Hz - 50kHz | | THD + N | Mic: Less than 0.1%
Line: Less than 0.005% | | Common Mode Rejection Ratio | Mic: Greater than 60dB
Line: Greater than 50dB | | Residual Noise | Mic: -79dB (50dB Gain), -70dB (60dB Gain)
Line: -85dB | | Headroom | Greater than 20dB Above +4 dBu Line Output | | Power Requirements | 24 to 33 VDC @ 80mA (Can be input via Terminal Block or Power Input Jack) | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 6.7 x 6.2 x 2.8" |
