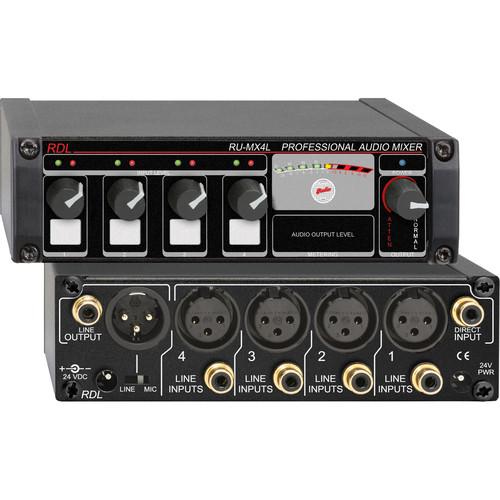

Product description The RDL RU-MX4L is a four-channel audio mixer with XLR and RCA line inputs. Outputs include a switchable balanced XLR mic/line output, as well as an additional unbalanced RCA jack that may be used to link another RU-MX4L or RU-MX4LT. This mixer is useful for combining balanced line and unbalanced line inputs into a single output. The RU-MX4L is suitable for small sound reinforcement, public address systems, or mixer expansion applications.

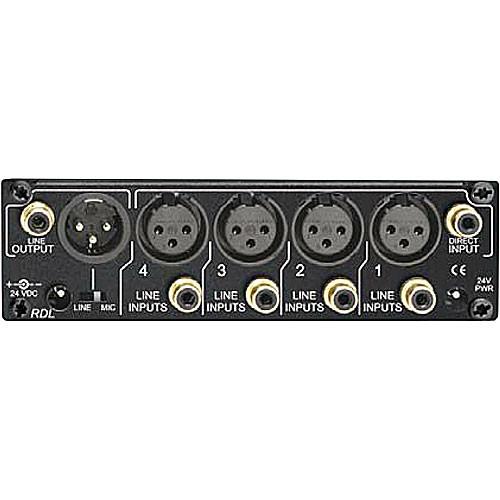

You'll note that for outputs, you have the options of an RCA out or a balanced XLR out. The XLR output is switchable between mic or line level. While you can only use one input configuration at a time (either XLR or RCA), you can use both outputs simultaneously.

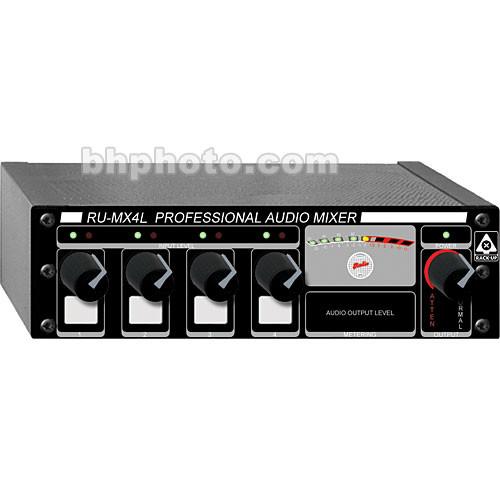

Levels can be adjusted on the front panel, which leaves you enough space to label each input. Each input sports a dual-LED VU meter following standard VU ballistics with a green indicator for signal and a red LED when you go over the correct operating level. The output is displayed on an LED string VU meter. Please note, you must purchase the corresponding PS-24AS power supply separately. - Four Line Input Channels
- Each channel features a balanced XLR line input and an unbalanced RCA line input.
- Flexible Output Section
- The outputs consist of a mic/line selectable XLR channel, and an unbalanced RCA output that may be used for linking multiple mixers.
UPC: 813721013071 In the Box RDL RU-MX4L 4-Channel Line-Level Mixer Power Interconnect Cable for Additional Units Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU-MX4L 4-Channel Line-Level Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU-MX4L Specs | I/O | 4 x XLR inputs, balanced
5 x RCA inputs, unbalanced
1 x RCA output, unbalanced
1 x XLR output, balanced | | Input Level | Balanced: -13 to +22 dBu (+4 dBu output)
Unbalanced: -25 to +20 dBV (+4 dBu output, -10 dBV nominal) | | Input Impedance | Balanced: 20 kOhms
Unbalanced: 2 kOhms | | Output Level | +4 dBu balanced (switchable to MIC level -45 dBu),-10 dBV unbalanced | | Output Impedance | Balanced: 150 Ohms | | Gain Adjustment | Balanced: Off to 17 dB
Unbalanced: Off to 27 dB | | Frequency Response | 20 Hz to 30 kHz (
