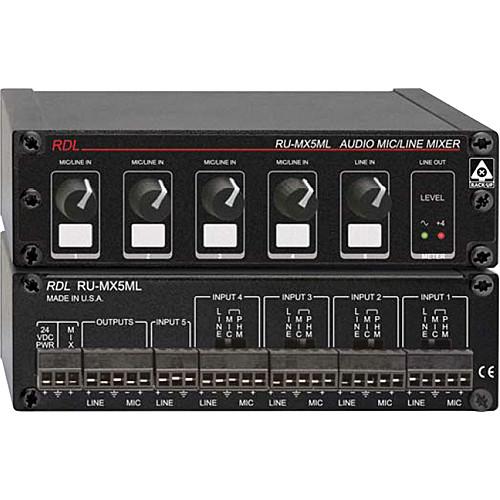

Product description The RU-MX5ML 5-Channel Mic/Line Audio Mixer with Phantom Power from RDL is a compact, 5-channel mixer capable of mixing audio from line and microphone input sources. The mixer feature terminal block connections making it ideal for fixed audio installations and commercial audio applications. The output section is capable of both balanced or unbalanced signals. The RU-MX5ML sends 24V phantom power to condenser microphones, which can be individually switched to allow for a combination of dynamic and condenser microphones to be used simultaneously. The front panel features level control dials for each channel, as well as signal input LEDs. The RU-MX5ML requires a 24 VDC power supply (available separately). - Microphone or line level audio mixer
- Five-channel audio mixer with expansion capability
- Inputs and outputs on detachable terminal blocks
- Switchable 24V phantom for each mic input
- Balanced microphone and line outputs
- Expansion bussing capability
- Output level dual‑LED VU metering
- Studio‑quality, low‑noise performance
- Requires a (separately available) 24 VDC power supply
UPC: 813721013361 In the Box RDL RU-MX5ML 5-Channel Mic/Line Audio Mixer with Phantom Power Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU-MX5ML 5-Channel Mic Line Audio Mixer with Phantom Power in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU-MX5ML Specs | Inputs | 6 x Inputs:
4 x Selectable Mic or Line-Level
1 x Line-Level
1 x Direct MIX
All with Detachable Terminal Blocks | | Input Impedance | Mic: > 1.2 kOhms, Balanced
Line: > 10 kOhms, Balanced | | Maximum Input Level | Mic: -20 dBu
Line: +24 dBu | | Phantom Power | Switch-Selectable 24 V (IEC 61938: 2013) | | Gain | Mic: Off to 65 dB
Line: Off to 15 dB | | Outputs | Mic: -45 dBu, Balanced
Line: +4 dBu, Balanced
All with Detachable Terminal Blocks | | Output Impedance | 150 Ohms, Balanced | | Frequency Response | Mic: 80 Hz to 40 kHz (±1 dB, < ‑6 dB at 20 Hz with Integral High-Pass Filter)
Line: 10 Hz to 35 kHz (±0.5 dB) | | Total Harmonic Distortion (THD) + N | Mic: < 0.03%
Line: < 0.003% | | Headroom | 20 dB (Above +4 dBu Output) | | Noise | < ‑70 dB Below +4 dBu Output (20 Hz to 20 kHz, All Mic Channels at 50 dB Gain; or One Mic Channel Active at 60 dB Gain); < ‑90 dB Below +4 dBu (20 Hz to 20 kHz, All Channels Off) | | CMRR | Mic: > ‑65 dB (10 Hz to 10 kHz)
Line: > ‑45 dB | | Metering | Dual‑LED VU Meter (Calibrated to +4 dBu) | | Power Requirements | Ground-Referenced, 24 VDC @ 75 mA (120 mA Max Including Phantom); Detachable Terminal Block (Available Separately) | | Temperature | 32 to 131°F / 0 to 55°C | | Dimensions (H x W x D) | 1.70 x 5.80 x 4.80" / 4.32 x 14.73 x 12.19 cm | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.39 lb | | Box Dimensions (LxWxH) | 6.75 x 6.25 x 2.75" |
