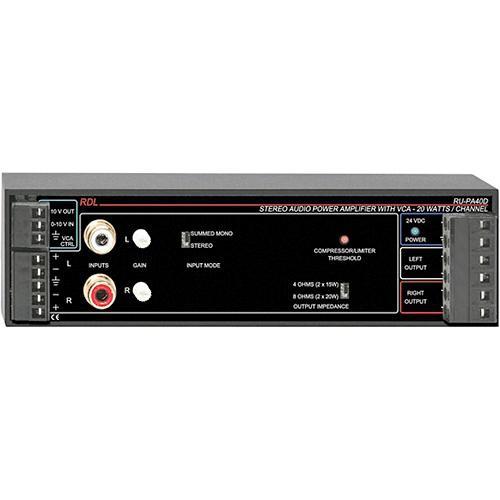

Product description The RU-PA40DE 40W Stereo Audio Amplifier with European Power Supply from RDL is an amplifier that is designed to power a pair of 4- or 8-Ohm speakers with adjustable gain. It can be used with projectors or with monitors with fixed audio outputs, in classrooms, boardrooms, or in video conferencing applications. In addition, it is ideal for foreground sound amplification in small to medium rooms or in a specific zone within a retail space.The RU-PA40DE is equipped with two balanced line-level inputs via a detachable terminal block and two unbalanced line-level inputs via gold-plated phono RCA jacks. Furthermore, a front-panel gain control trimmer sets the maximum gain for each channel. A front-panel switch to sum the audio inputs to mono is provided. A built-in stereo analog compressor/limiter is for audio fidelity and clipping suppression.Finally, a blue power LED illuminates when the RU-PA40DE is powered from its external 24 VDC power supply (included). The module is equipped with both thermal and output short-circuit protection. - VCA control on detachable terminal block
- Gold-plated RCA input jacks
- Efficient 40W Class-D amplification with thermal and short-circuit protection
- Compressor/limiter helps control clipping
UPC: 813721013330 In the Box RDL RU-PA40DE 40W Stereo Audio Amplifier with European Power Supply PS-24U2 AC Adapter - for Worldwide Use stawcrdzubycrxfbayedvadz Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU-PA40DE 40W Stereo Audio Amplifier with European Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU-PA40D Specs | Inputs | 4 x Line Level: Balanced +4 dBu Left and Right; Unbalanced -10 dBV Left and Right | | Input Impedance | 50 kOhms Balanced, 20 kOhms Unbalanced | | Gain Adjustment | 2 x Single Turn, One Per Channel | | Minimum Input Level | -11 dBu Balanced, -18 dBV Unbalanced (to Cross Compressor Threshold) | | Maximum Input Levels | +22 dBu Balanced, +12 dBV Unbalanced | | VCA | Control: External 0 to 10 VDC (Linear), 10-kOhm Linear Taper Potentiometer
RDL Remote Controls 10 VDC VCA Reference Voltage Output Provided | | Frequency Response | 20 Hz to 20 kHz (± 1 dB, 4 or 8 Ohms) Measured at Compressor Threshold Level Equaling 12 W RMS (8 Ohms) Output Power | | Total Harmonic Distortion (THD) + N | < 0.1% (1 kHz, 1 W, 4 or 8 Ohms); < 1% (50 Hz to 20 kHz,) Measured at Compressor Threshold Level Equaling 12 W RMS (8 Ohms) Output Power | | Compressor | Threshold Nominally 2 dB Below Rated Output, Automatically Adjusting Attack and Release Times | | Crosstalk | Better than 60 dB (1 kHz, No Compression) | | Noise | Below 20 W RMS: < -80 dB (VCA Control 6.25 V; Output Level 6 dB Below Max.) < -70 dB (VCA Control Max.) | | Switch Functions | Slide Switches: Output Impedance 4 Ohms or 8 Ohms; Input Mode Summed Mono or Stereo | | Output Power | 20 W RMS into 8 Ohms per Channel, 40 W RMS Total; 15 W RMS into 4 Ohms per Channel, 30 W RMS Total | | Output Circuit | Class D | | Ambient Operating Environment | 32 to 104°F / 0 to 40°C Maximum; 68°F / 20°C Recommended | | Indicators | Red LED: Threshold LED Indicates Compressor Activity
Blue LED: Power On | | Power Supply | 100 to 240 VAC, 50 to 60 Hz, 1.5 A; 24 VDC Output to Module | | Dimensions (L x H x W) | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 5.9 x 5.1 x 2.4" |
