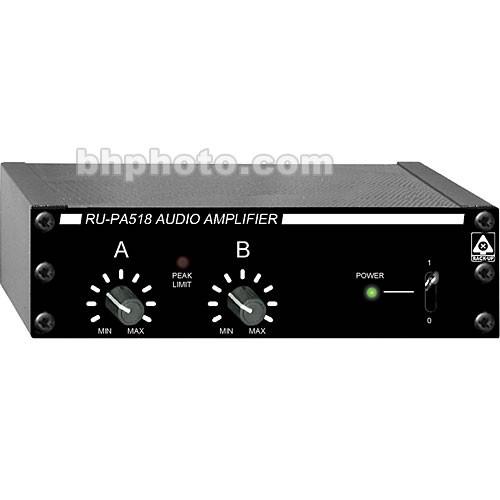

User Manual for RDL RU-PA518 Audio Power Amplifier with Peak Limiter Click to enlarge the picture
Contents of the user manual for the RDL RU-PA518 Audio Power Amplifier with
- Product category: Standard Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Standard Amplifiers
|
User manual for the RDL RU-PA518 Audio Power Amplifier with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL RU-PA518 audio power amplifier offers operation in either stereo or bridged-mono mode, providing from 5 watts to over 18 watts of RMS output power, all in a 1/3 rack size unit. RDL's advanced circuitry provides professional-quality audio with a built-in peak limiter. Gain controls for each channel are on the front-panel for quick and easy adjustments. - Stereo and bridged-mono operating modes
- Front-panel gain controls
UPC: 813721012821 In the Box RDL RU-PA518 Audio Power Amplifier with Peak Limiter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU-PA518 Audio Power Amplifier with Peak Limiter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU-PA518 Specs | Output Power | 4 ohms Stereo (Per Channel): 9 W RMS
8 ohms Stereo (Per Channel): 5 W RMS
8 ohms Bridged-Mono: 18 W RMS | | Input Sensitivity | -6 dBu Balanced (Minimum)
-20 dBV Unbalanced (Minimum)
+20 dBu Balanced (Maximum)
+6 dBV Unbalanced (Maximum) | | Input Impedance | 20 kOhms Balanced, 10 kOhms Unbalanced | | Frequency Response | 20 Hz to 40 kHz ((±1 dB, stereo mode, 8 ohms output @ 5 W RMS))
25 Hz to 40 kHz ((±1 dB, stereo mode, 4 ohms output @ 9 W RMS)
25 Hz to 30 kHz (±1 dB, bridge mono mode, 8 ohms output @ 18 W RMS) | | THD + N | < 0.05% below rated power (1 kHz)
< 0.1% below 18 W RMS (50 Hz to 20 kHz) | | Noise | < -85 dB below rated output | | CMRR | > 55 dB (50 to 120 Hz) | | Crosstalk | < -60 dB (stereo mode, 1 kHz) | | Input Connections | 2 x Unbalanced Phono Jacks
Balanced Rear-Panel Barrier Strip | | Output Connectors | Rear-Panel Barrier Strip | | Controls Front Panel | Power Switch, Gain Controls | | Controls Rear Panel | Mode Switch | | Indicators | Front-Panel LED | | Ambient Operating Temperature | 32 to 104°F (0 to 40°C) | | Power Requirement | Ground-Referenced, 24 to 33 VDC @ 1500 mA (RMS output) 1000 mA (Continuous music or voice) | | Dimensions (W x D x H) | 8.0 x 5.8 x 1.7" (20.3 x 15.0 x 4.3 cm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.25 x 6.4 x 2.4" |
