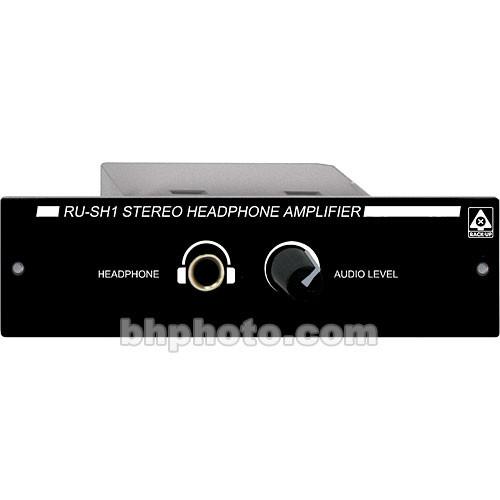

User Manual for RDL RU-SH1 Stereo Headphone Amplifier Rack-Up Click to enlarge the picture
Contents of the user manual for the RDL RU-SH1 Stereo Headphone Amplifier Rack-Up
- Product category: Headphone Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Headphone Amplifiers
|
User manual for the RDL RU-SH1 Stereo Headphone Amplifier Rack-Up contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The Radio Design RU-SH1 is used in applications requiring headphones of any impedance to be driven from consumer or professional audio sources. This model is made for rack mounting. The RU-SH1 is a dual-channel headphone amplifier with balanced/unbalanced left and right inputs accepting operating levels between -20 dBV and +20 dBu. Two recessed slide switches located on the side of the rear enclosure are set prior to mounting the module: one sets the input sensitivity, the other selects between stereo and mono operation. The front panel level control is a long-life potentiometer. Because audio does not pass through this control, it can provide years of noise-free level adjustment. - Long Life Controls
- Because audio does not pass through the Radio Labs RU SH-1 control, it assures years of noise-free level adjustment. This, with the integral long-life VCA stereo level control (with balanced or unbalanced inputs) means you will have a durable and dependable amplifier.
- Drives High or Low Impedance Headsets
- The unit comes with built-in headphone adaptability. The output amplifiers deliver more than 50 mW into either high- or low-impedance headphones through a durable 1/4" (6.3 mm) standard headphone jack.
- Rack Mounting
- This small but efficient headphone amplifier is designed to fit easily into your system rack.
UPC: 813721013132 In the Box RDL RU-SH1 Stereo Headphone Amplifier Rack-Up 3-Year Warranty from Date of Shipment Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU-SH1 Stereo Headphone Amplifier Rack-Up in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU-SH1 Specs | Number of Channels | 1 | | Input Connections | balanced/unbalanced left and right inputs x 2 | | Output Connectors | 1/4" TRS x 1 | | Maximum Output Level | 50 mW | | Function Controls | Volume | | Frequency Response | 30 Hz to 20 kHz (+/- 2 dB) | | THD + N | < 0.5% @ 1 kHz | | Noise | < -70 dB below normal operating level | | Display | No | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 2.25 x 2.0 x 0.56" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
