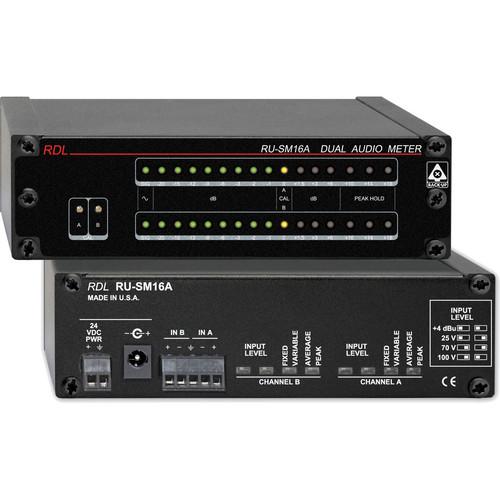

User Manual for RDL RU-SM16A 2-Channel Audio Meter Click to enlarge the picture
Contents of the user manual for the RDL RU-SM16A 2-Channel Audio Meter
- Product category: Metering RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Metering
|
User manual for the RDL RU-SM16A 2-Channel Audio Meter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL RU-SM16A 2-Channel Audio Meter is a 1RU 1/3 rack module designed for precise metering of up to 2 channels of audio. The unit can be used for either 2 channels of mono metering or stereo operation and is designed to be integrated into new and existing setups.
Each channel utilizes sixteen LED indicator lights and may be individually calibrated for unbalanced consumer, balanced professional, 8 Ω speaker line, or constant voltage speaker lines (25V, 70V, 100V). The rear panel features terminal blocks for connections and variable or fixed calibration for 25V, 70V, 100V, and +4 dBu sources. When placed in the "variable" position, a set of front panel multi-turn trimmers can be used for calibrating the meter levels.
Each meter on the unit can be set to either peak or average audio level displays. In monaural applications, a mono source can be fed to two meters for both peak and average metering. UPC: 813721013477 In the Box RDL RU-SM16A 2-Channel Audio Meter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU-SM16A 2-Channel Audio Meter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU-SM16A Specs | Channels | 2 | | Input Impedance | > 40 kΩ balanced | | Input Level | +4 dBu (+4 switch settings, for 0 dB reading)
25 V (25 V switch settings, for 0 dB reading)
70 V (70 V switch settings, for 0 dB reading)
100 V (100 V switch settings, for 0 dB reading) | | Input Level Range | Constant-voltage or low impedance (4 Ω or 8 Ω) amplifier output
-24 dBu to +12 dBu (+4 switch settings for 0 dB reading
2 V to 90 V (25 V switch settings, for 0 dB reading)
4 V to 90 V (70 V switch settings, for 0 dB reading)
5 V to 100 V (100 V switch settings, for 0 dB reading) | | Frequency Response | 20 to 20,000 Hz | | Indicators | SIG, -20, -15, -12, -9, -6, -3, -2, -1, 0, +1.5, +3, +6, +10, +14, +18
(+10, +14, +18 are PEAK HOLD indicators only) | | Response | Each channel individually selectable PEAK or AVG (switch-selectable)
Rise time (10 to 90%): 50 us (peak), 130 ms (average)
Rise time (0 to 100%): 60 us (peak), 300 ms (VU characteristic)
Fall time (90 to 10%): 65 us (peak), 185 ms (average)
Fall time (100 to 0%): 100 us (peak), 300 ms (VU characteristic) | | Ambient Operating Temperature | 32 to 131&Deg; F (0 to 55° C) | | Power Requirement | Ground-Referenced: 24 VDC at 250 mA | | Dimensions (W x D x H) | 5.740 x 2.970 x 1.640" (14.580 x 7.540 x 4.170 cm) | | Weight | WEEE: 0.965 lb (0.438 kg) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 7.2 x 5.1 x 2.4" |
