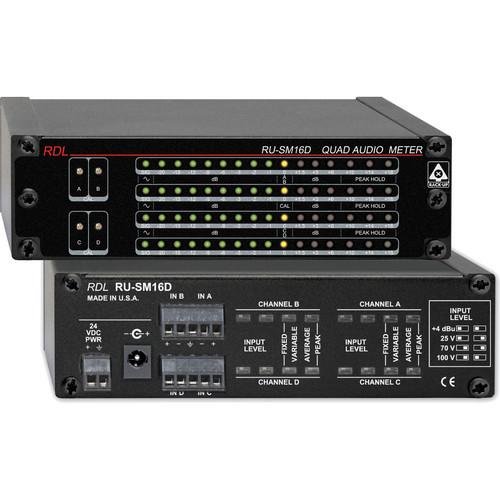

Product description The RDL RU-SM16D 4-Channel Audio Meter is a 1RU 1/3 rack module designed for precise metering of up to 4 channels of audio. The unit can be used for either 4 channels of mono metering or dual-stereo operation and is designed to be integrated into new and existing setups.
Each channel utilizes sixteen LED indicator lights and may be individually calibrated for unbalanced consumer, balanced professional, 8 Ω speaker line, or constant voltage speaker lines (25V, 70V, 100V). The rear panel features terminal blocks for connections and variable or fixed calibration for 25V, 70V, 100V, and +4 dBu sources. When placed in the "variable" position, a set of front panel multi-turn trimmers can be used for calibrating the meter levels.
Each meter on the unit can be set to either peak or average audio level displays. In monaural applications, a mono source can be fed to two meters for both peak and average metering. In stereo mode, both the left and right channels can be sent to one peak and one average metering channel. UPC: 813721013484 In the Box RDL RU-SM16D 4-Channel Audio Meter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU-SM16D 4-Channel Audio Meter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU-SM16D Specs | Channels | 4 | | Input Impedance | > 40 kΩ balanced | | Input Level | +4 dBu (+4 switch settings, for 0 dB reading)
25 V (25 V switch settings, for 0 dB reading)
70 V (70 V switch settings, for 0 dB reading)
100 V (100 V switch settings, for 0 dB reading) | | Input Level Range | Constant-voltage or low impedance (4 Ω or 8 Ω) amplifier output
-24 dBu to +12 dBu (+4 switch settings for 0 dB reading
2 V to 90 V (25 V switch settings, for 0 dB reading)
4 V to 90 V (70 V switch settings, for 0 dB reading)
5 V to 100 V (100 V switch settings, for 0 dB reading) | | Frequency Response | 20 to 20,000 Hz | | Indicators | SIG, -20, -15, -12, -9, -6, -3, -2, -1, 0, +1.5, +3, +6, +10, +14, +18
(+10, +14, +18 are PEAK HOLD indicators only) | | Response | Each channel individually selectable PEAK or AVG (switch-selectable)
Rise time (10 to 90%): 50 us (peak), 130 ms (average)
Rise time (0 to 100%): 60 us (peak), 300 ms (VU characteristic)
Fall time (90 to 10%): 65 us (peak), 185 ms (average)
Fall time (100 to 0%): 100 us (peak), 300 ms (VU characteristic) | | Ambient Operating Temperature | 32 to 131&Deg; F (0 to 55° C) | | Power Requirement | Ground-Referenced: 24 VDC at 250 mA | | Dimensions (W x D x H) | 5.740 x 2.970 x 1.640" (14.580 x 7.540 x 4.170 cm) | | Weight | WEEE: 1.09 lb (0.944 kg) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 7.2 x 5.0 x 2.3" |
