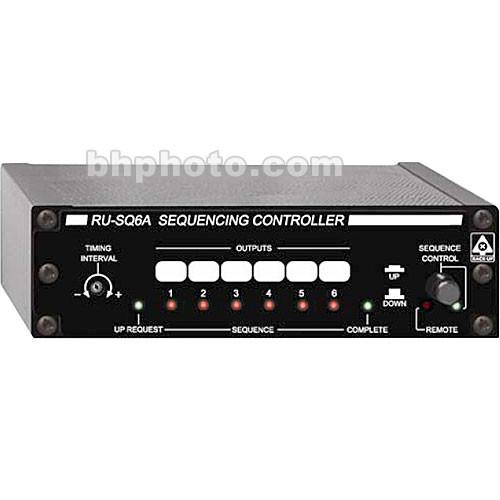

User Manual for RDL RU-SQ6A - Sequencing Controller Click to enlarge the picture
Contents of the user manual for the RDL RU-SQ6A - Sequencing Controller
- Product category: Power Supplies RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Power Supplies
|
User manual for the RDL RU-SQ6A - Sequencing Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL RU-SQ6A is a 1/3 rack space sequencing controller ideal for any application that requires control of sequential power-up or events. The unit has six sequential steps, each with two types of outputs. The first is an open collector capable of switching loads of 50mA, while the other is an SPST dry contact closure that can be used to control a variety of equipment. An internal microcontroller ensures accurate timing, which can be adjusted to intervals from one to ten seconds via a front-panel timing control knob.
The up or down sequence is user-controlled either by front-panel pushbuttons or via a remote connected to the rear panel. Front-panel LEDs indicate which of the six channels is currently activated, as well as whether front-panel or remote control is selected, when an "up" request is received, and when the sequence is complete. All connections are made via rear-panel screw terminals. - Control up to six sequential events
- Adjustable time interval from 1 to 10 seconds
- Open-collector outputs and relay contact closures
- Control the sequence via the front panel or by remote
- Front-panel indicator LEDs
UPC: 813721013187 In the Box RDL RU-SQ6A - Sequencing Controller 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL RU-SQ6A - Sequencing Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL RU-SQ6A Specs | Control Input | External Closure < 2.5mA @ 24VDC | | Interval Between Outputs | 1 to 10 Seconds Nominal, Front-Panel Adjustable | | Indicators | 6 x Red "Channel On" LEDs
1 x Green "Up Request" LED
1 x Green "Complete" LED
1 x Each Red and Green LEDs for Remote or Front-Panel Activation | | Output Power | 1.1 A Maximum, 100mA Less Than Power Supply Current | | Outputs | 6 x Open-Collector 200mA Surge; 50mA Continuous; 200mA Maximum
6 x SPST Relay Outputs (Closed When Active) | | Switching Power | 60W, 125 VAC (Maximum) | | Switching Voltage | 220 VDC, 250 VAC (Maximum) | | Switching Current | 2 A (Maximum) | | Carrying Current | 3 A (Maximum) | | Power Requirements | 24 to 33 VDC @ 100mA, Plus Total Load Current Connected to 24 VDC Output, Ground-Referenced | | Dimensions (LxHxD) | 5.8 x 1.7 x 3.45" (147 x 43 x 88 mm) | | | | Package Weight | 4.38 lb | | Box Dimensions (LxWxH) | 7.0 x 2.25 x 1.11" |
